M12 Power Connector,Panel Mount Adapter,Male/Female,4P,T Code
P/N: AM12H0412T001

M12 Power Connector,Panel Mount Adapter,Male/Female,4P,T Code

M12 Receptacle,4P,T Code,M12 Adapter Connector,Straight,IP67

ADD TO REQUEST
  • Description
  • Technical Data

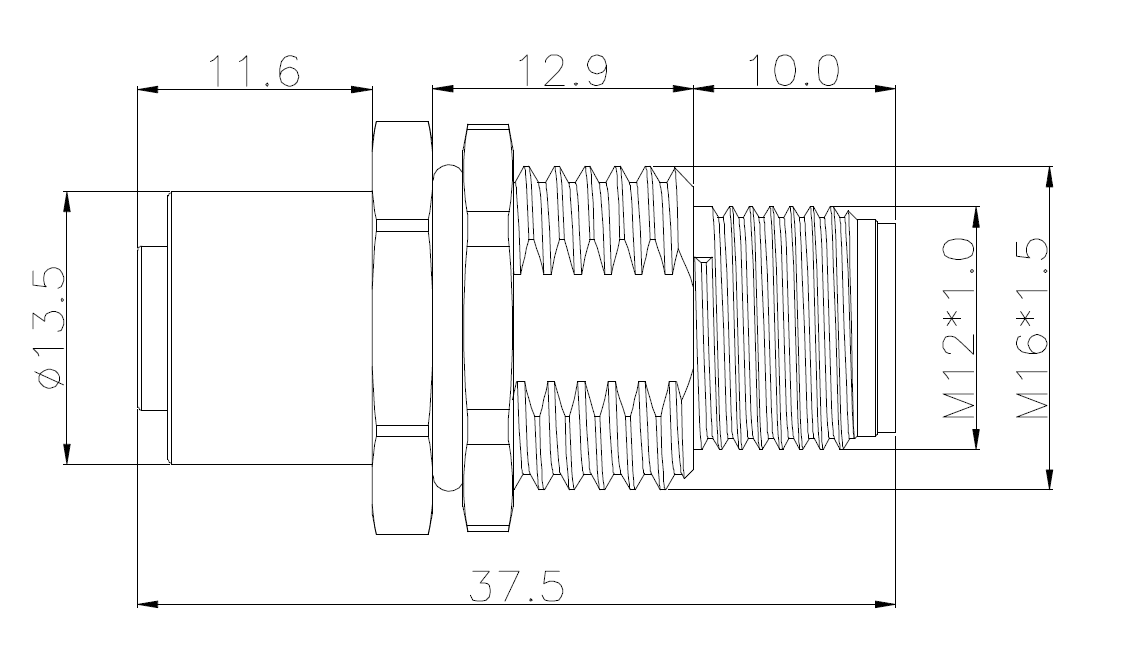

  • Dimension

Your Benefits

1、Introduction of the lead through for control cabinets in the new design.

2、For connections of signal, data and supply cables.

3、M12 screw and M16 fixing thread.

4、Easy and flexible installation.

5、Continuous contacts for robust and safe signal transmission.

6、Shielding available.


StandardIEC61076-2-111
Locking system
Fix screw locking
GenderMale/Female
SeriesAM12
Ordening P/NAM12H0412T001
CodingT
Torque2.0N.M
CatogoryDevice Connector
Connection type/
Custom tariff number85444290
Country of originChina

Electrical

Rated current12A
Rated voltage63V
Rated Impluse voltage1500V
Insolation resistance≥ 100 MΩ
EMC complianceShielded
Degree of protectionIP67
Mechanical operation> 100  mating cycles
Opertation temprature-40 °C ~ 85 °C

Material

Flammability ratingAcc. to UL 94 V0
Contact material
Brass with Gold plated
Insolation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
shell materialBrass with Nickle plated
