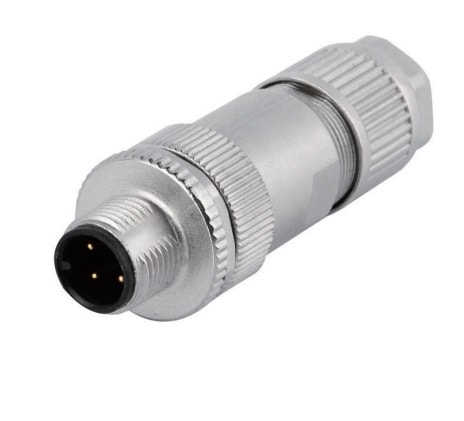

M12 cable connector, male, contacts: 4, field assembly type, screw connection, A code, straight, IP67
P/N: AM12M0434A001

M12 cable connector, male, contacts: 4, field assembly type, screw connection, A code, straight, IP67

  • Description
  • Technical Data

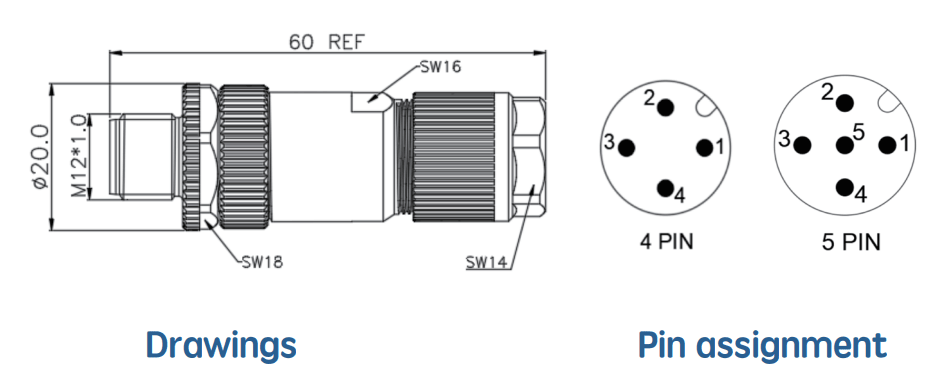

  • Dimension

Your Benefits

- Degree of protection IP67

- 360° EMC shielding solution

- AISG ccompatible

- UL certified under number E517859


StandardDIN EN61076-2-101
Locking systemFix screw locking
SeriesAM12
Ordering P/N:AM12M0434A001
GenderMale
CodingA
Torque0.5N.M
CategoryField assembly
Connection typeSolder connection
Wire gauge(max.)22AWG
Cable outletOD4~8MM
Custom tariff number85444290
Country of originChina

Approvals

Approval 1UL


Electrical

Rated current4A
Rated voltage250V
Rated Impulse voltage2500V
Insulation resistance≥ 100 MΩ
EMC complianceShielding
Protection degreeIP67
Mechanical operation> 100  mating cycles
Operation temperature-25 °C ~ 85 °C

Material

Flammability rating
Acc. to UL 94 V0
Contact materialBrass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickel plated
Sealing materialSilicone
shell materialBrass with Nickel plated
