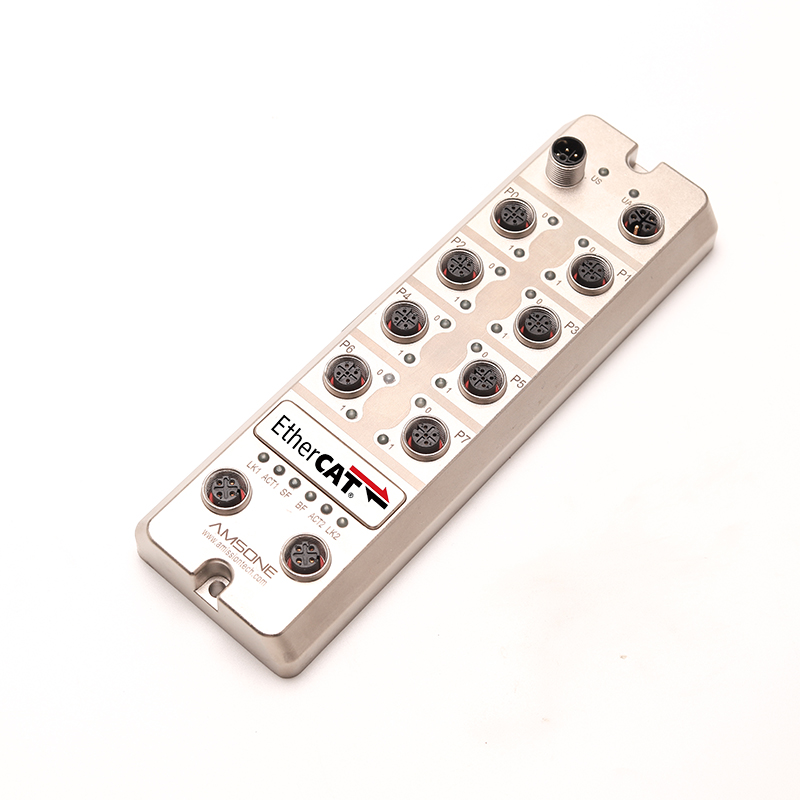

AMSONE IO-Link Master ETHERCAT AIOLM8M12E001
P/N: AIOLM8M12E001

AMSONE IO-Link Master ETHERCAT AIOLM8M12E001

ADD TO REQUEST
  • Description
  • Technical Data

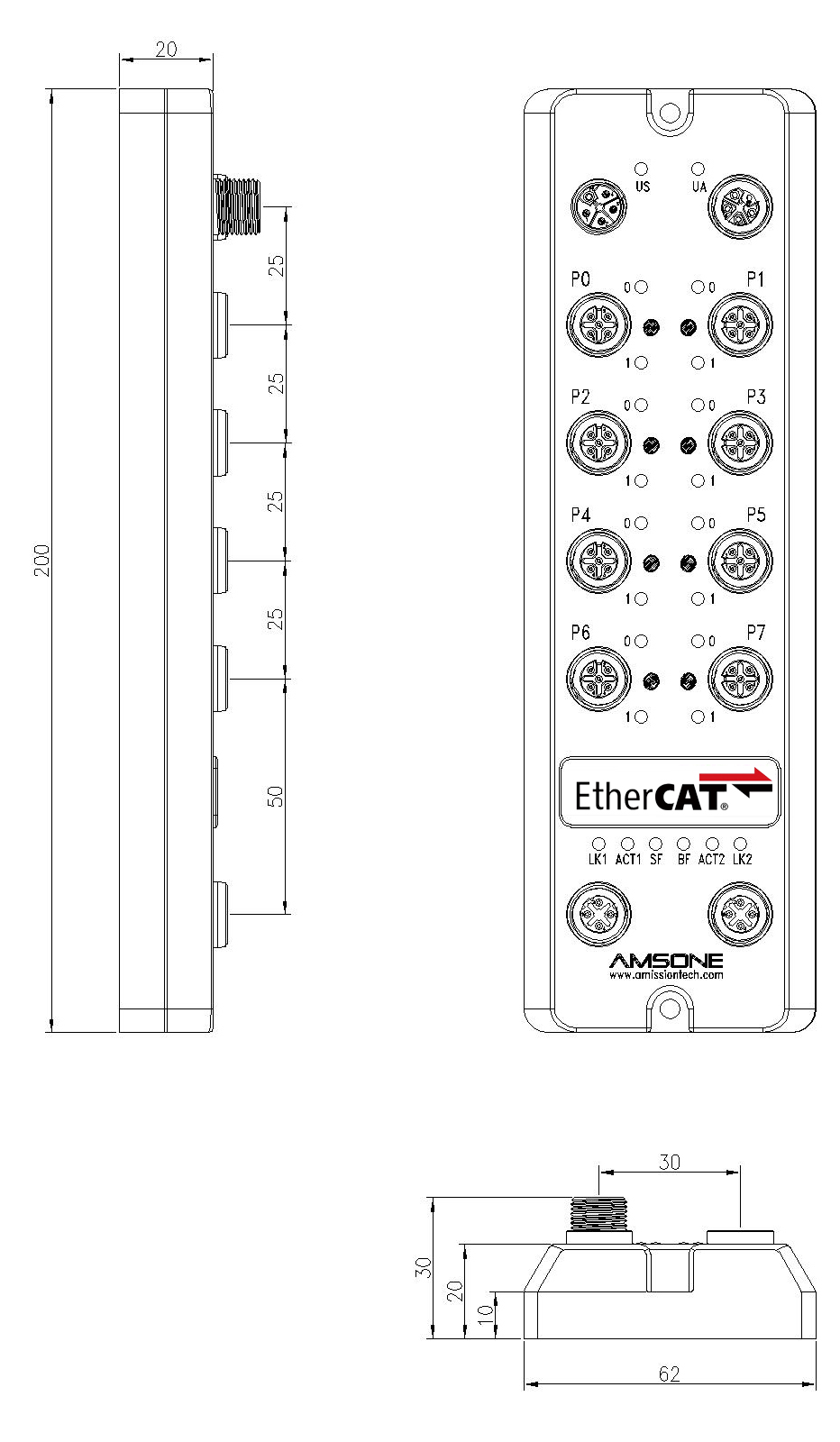

  • Dimension
Your Benefits
IO-Link Association member enterprise
PROFINET Currents up to 9 A
Conform to IEC 61131-9
Connector standard: UL 2238
UL certified: E497120/E517859
StandardIEC 61131-9
Locking system
Fix screw locking
GenderIO-Link
SeriesPROFINET
Ordering P/NAIOLM8M12E001
CodingM12 A/D/L Code
Torque0.5N.M
CategoryIO-Link
Connection type-
Cable outlet-
Custom tariff number85444290
Country of originChina


Electrical

Rated current9A
Rated voltage125V
Rated Impulse voltage1000V
Insulation resistance≥ 100 MΩ
EMC complianceOptional
Degree of protectionIP67
Mechanical operation> 100  mating cycles
Operation temperature-40 °C ~ 80 °C

Material

Flammability ratingAcc. to UL 94 V0
Contact material
Brass with Gold plated
Insulation materialPA66
Ring nut materialBrass with Nickle plated
Sealing materialSilicone
Shell materialZinc alloy
