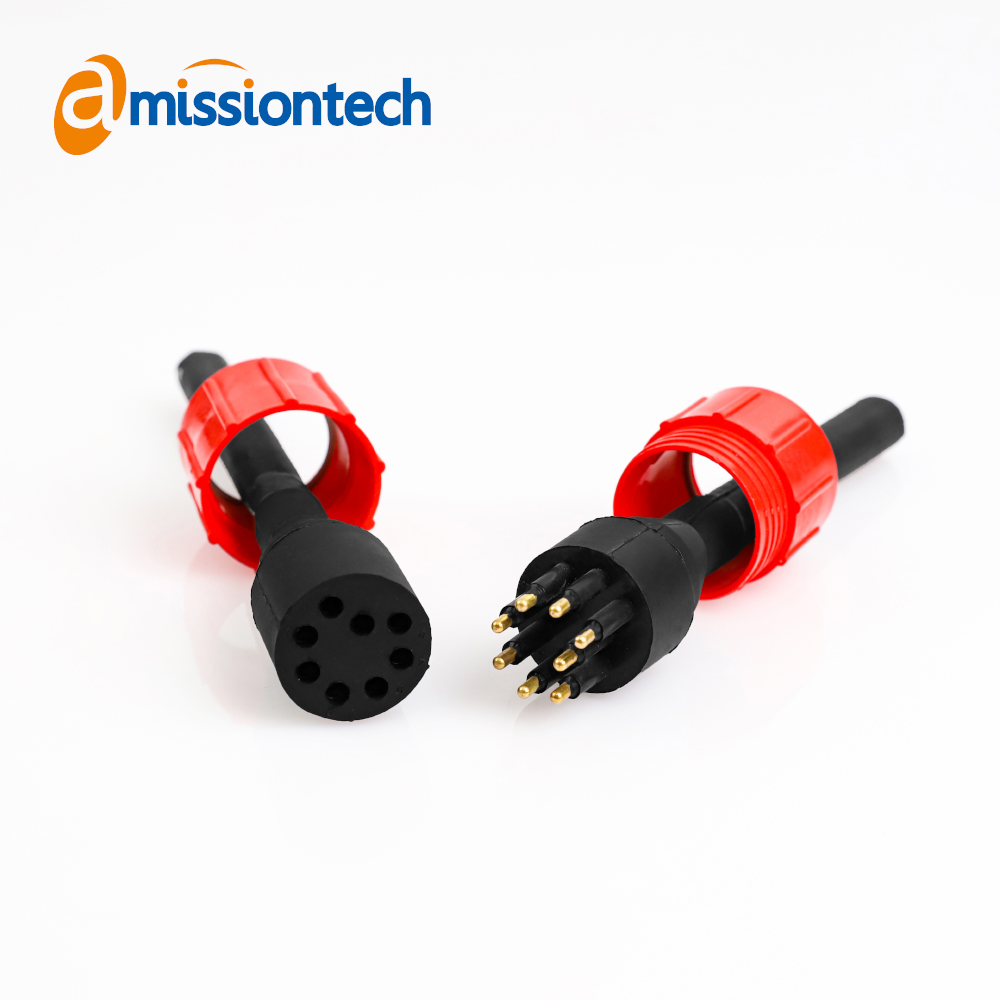

1L8M Circular 6, 8, 10 Contacts Underwater Cable Connector
P/N: 1L8M

1L8M Circular 6, 8, 10 Contacts Underwater Cable Connector

ADD TO REQUEST
  • Description
  • Technical Data
  • Dimension

Benefits of 1L8M Circular Underwater Cable Connector

100% electrically tested plug-in components

DC connectors for up to 10 A and 600 V AC

Halogen-free and high flexible PUR cable

360°shielding, reliable shielding performance


StandardUnderwater connector
Locking systemFix screw locking
SeriesDeepsea connector
Ordering P/N:1L8M
GenderMale / Female
Contects6, 8, 10
Torque/
CategoryPre-molded cable
Connection typeWet mate
Cable outletCustom
Custom tariff number85444290
Country of originChina




Electrical

Rated current10 A per contact (max 50 A per connector)
Rated voltage600 V DC/AC ms
Rated Impulse voltage2000V
Mechanical operation> 500 mating cycles
Insulation resistance≥ 200 MΩ
EMC compliance/
Operation temperature-40°C ~ 60 °C
Degree of protection800 bar, 11.600 psi


Cable

Cable typeVariable
Conductor cross section0.82mm²
Gauge (AWG)16-18AWG
Temperature-40°C ~ 60 °C
Other resistanceUV resistant (720 h) UL 2556

Premium oil resistance (jacket)
Wire colourvariable
Lengthvariable


Material

Flammability ratingAcc. to UL 94 V0
Contact materialGold plated brass UNs-C36000
Insulation materialChloroprene rubber
Ring nut materialPOM or stainless steel
Sealing materialNitrile
Molding materialChloroprene Rubber
