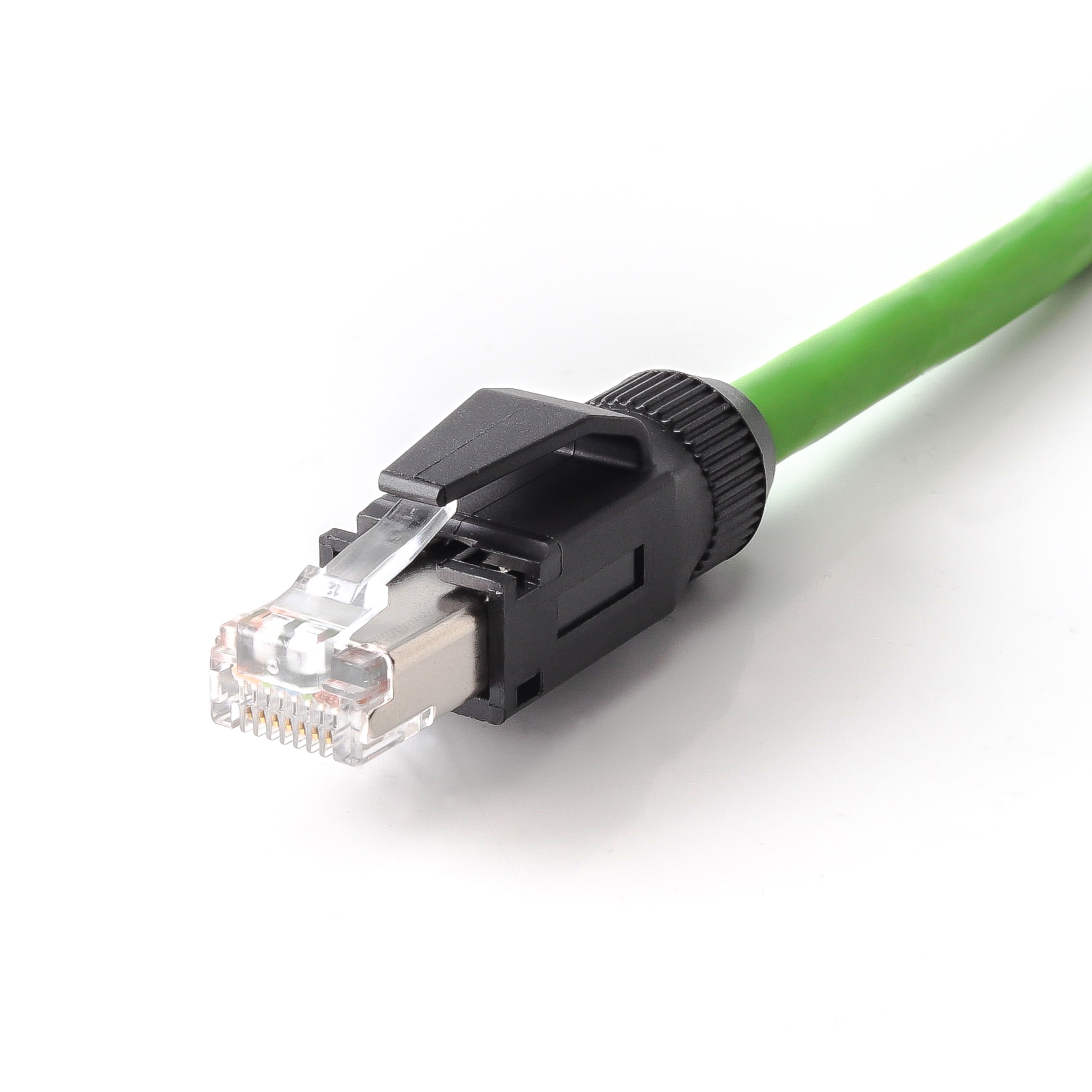

When choosing Ethernet cables, you may have noticed a specification labeled “MHz” on the package. Many people assume that a higher Ethernet MHz speed automatically means faster network performance. However, the truth is a bit more complex. To understand how Ethernet MHz affects your network, it’s essential to know what it really represents, how it connects to cable categories, and how it impacts data transmission in real-world applications.
To begin with, MHz stands for Megahertz, which is a measure of electrical frequency. In Ethernet cables, it indicates how many signal changes or oscillations occur per second. One MHz equals one million cycles per second. In simple terms, you can think of MHz as the capacity of the cable to carry data — similar to the width of a water pipe: the wider the pipe, the more water (or data) can flow through it.
However, it’s important to understand that MHz does not directly translate into network speed. Instead, it represents the maximum frequency that a cable can handle while maintaining signal integrity. A higher MHz rating means that the cable can carry more data over a given distance without interference or loss, but the actual network speed still depends on other components in your network system.
Next, let’s look at how MHz relates to Ethernet cable categories, often referred to as Cat5e, Cat6, Cat6a, Cat7, and Cat8. Each category defines the electrical performance and construction standards of a cable, as established by organizations such as ANSI/TIA 568.2-D and ISO/IEC 11801.
Each higher category supports higher frequency levels (MHz) and thus greater potential data capacity. For example:
Cat5e supports up to 100 MHz, suitable for 1 Gigabit Ethernet.
Cat6 supports up to 250 MHz, allowing for 10 Gigabit Ethernet at short distances.
Cat6a supports up to 500 MHz, offering full 10 Gigabit Ethernet performance up to 100 meters.
Cat8 supports up to 2000 MHz, designed for data centers and high-speed applications up to 40 Gbps.
In essence, the higher the category, the higher the cable’s MHz frequency, and the better it can support modern, high-bandwidth applications.
Although Ethernet MHz and application bandwidth are related, they are not the same. Application bandwidth refers to the actual data rate your network can transmit, such as 100BASE-TX (100 Mbps), 1000BASE-T (1 Gbps), or 10GBASE-T (10 Gbps). These speeds are defined by network protocols rather than the cable itself.
For your network to function at its full speed, all components — including the router, switch, and Ethernet cable — must support the same or higher application bandwidth. The cable’s MHz rating provides the necessary foundation for this. For instance, a 10GBASE-T application requires a cable that can handle at least 500 MHz (Cat6a or higher).
So, while MHz does not equal speed, it enables your system to reach higher speeds without signal degradation.
Now that we’ve clarified the theory, let’s discuss practical performance. The higher the Ethernet cable’s MHz, the more data it can carry over distance with less interference. However, achieving this also depends on cable construction.
High-quality Ethernet cables are made with solid copper conductors, which perform better than stranded copper or copper-clad aluminum (CCA). The thickness of the insulation, tightness of the wire twists per inch, and pair balance also affect how well the cable maintains high-frequency signals. This is why Ethernet cables are called balanced twisted-pair cables.
For instance, Cat6a cables feature tighter twists and thicker insulation compared to Cat6, allowing them to support up to 500 MHz and maintain 10 Gbps speeds over 100 meters. Cat8 cables, with even more advanced shielding and construction, can support 2000 MHz, making them ideal for short high-speed connections in data centers.
In short, MHz defines the capacity, while physical construction ensures stability and consistency in real-world applications.
With many cable types available, choosing the right one depends on your performance needs and installation environment. Here’s a simple guide:
Cat5e (100 MHz) – Suitable for home and office networks running up to 1 Gbps.
Cat6 (250 MHz) – Ideal for small business setups or short-distance 10 Gbps applications.
Cat6a (500 MHz) – A reliable choice for professional networks requiring consistent 10 Gbps performance.
Cat8 (2000 MHz) – Designed for high-speed data centers or environments needing up to 40 Gbps.
When making a decision, balance your current requirements with future expansion. It’s often wise to invest in higher-category cables if you anticipate needing faster speeds later. While Cat6a or Cat8 cables may cost more upfront, they provide better performance, longer life, and improved shielding against interference — essential for stable Ethernet MHz speed and network efficiency.
In conclusion, Ethernet MHz speed is a critical factor in determining how efficiently your network can handle data transmission. While MHz doesn’t directly equal speed, it reflects the cable’s ability to support higher data rates and maintain strong signal quality. By understanding the relationship between MHz, cable category, and application bandwidth, you can make smarter choices for your network infrastructure.
Whether you are upgrading a small office, designing an industrial network, or setting up a data center, choosing Ethernet cables with the right MHz rating ensures your system remains reliable and future-proof.
