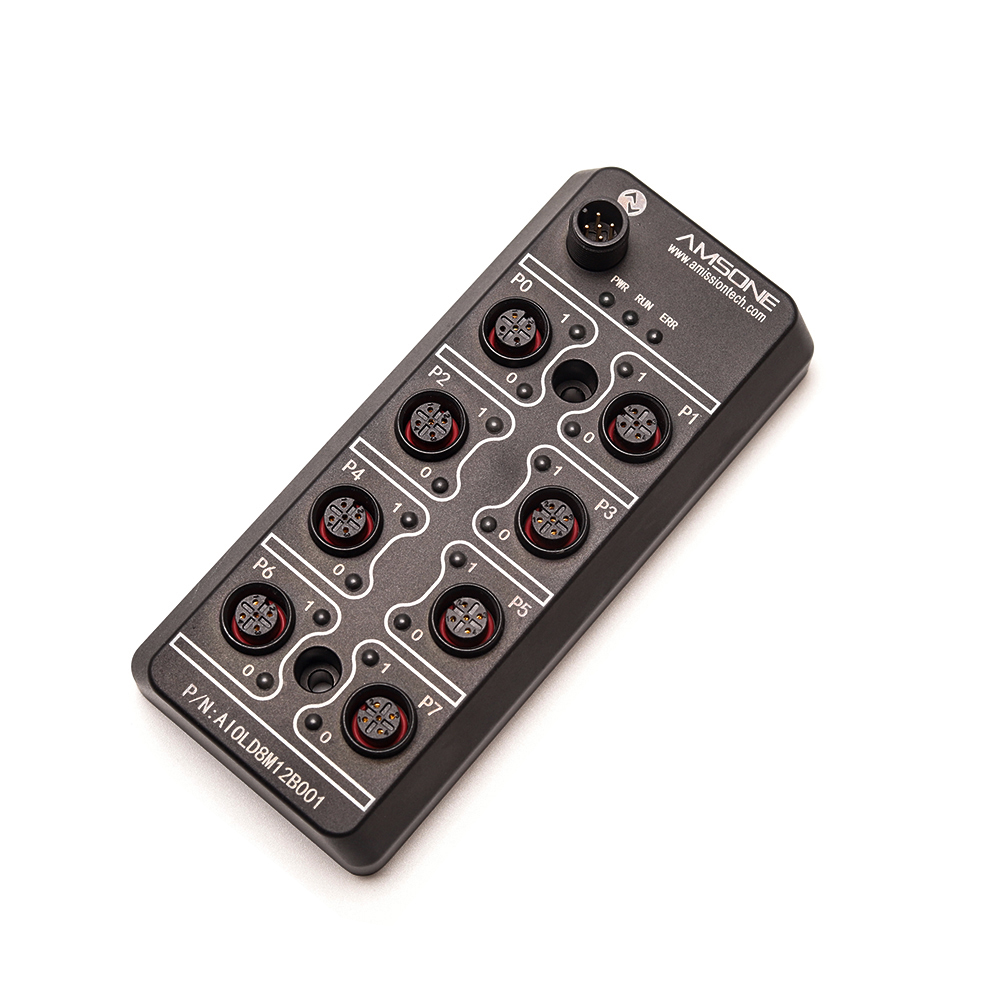

AMSONE IO-Link HUB BLACK METAL SHELL AIOLD8M12B001
P/N: AIOLD8M12B001

AMSONE IO-Link HUB BLACK METAL SHELL AIOLD8M12B001

Factory Direct IO LINK Hub IEC Standard IP67 M12 Connector Up To 9 A For Automation Intelligent Robot

ADD TO REQUEST
  • Overview
  • Install
  • Technical data

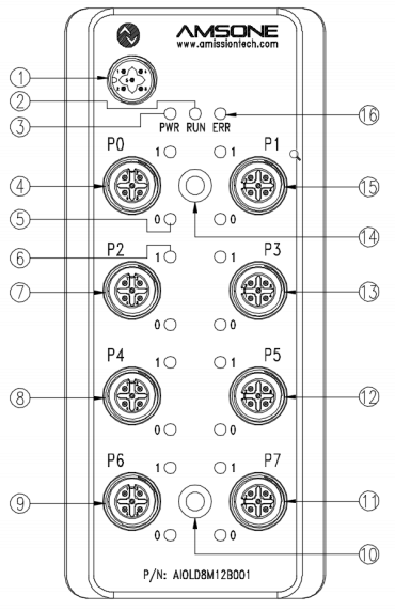

1、IO-Link Port

2、RUN LED

3、POWER LED4、Port 0
5、Indicator light 0：Pin26、Indicator light 1：Pin4
7、Port 28、Port 4
9、Port 610、Installation holes
11、Port 712、Port 5
13、Port 314、Installation holes
15、Port 116、ERROR LED


2.1 Installation tools

Fix with 2 sets of M4 screws and nuts


2.2 Power supply

The power supply for IO-Link HUB comes from the IO-Link Master station and does not require additional power supply.


2.3 IO-Link Ports


DPPISDUSubObject nameLengthRangeDefault value
IndexIndexinde
Identification Data
07hex 07

Vendor ID2 Byte
0x26F
08hex 08
09hex 09

Device ID3 Byte0x010501
0Ahex 10
0Bhex 11

10hex 160Vendor name24 Byte
11hex 170Vendor text32 Byte
12hex 180Product name32 ByteAIOLD8M12B001
13hex 190Product ID24 Byte“0x010501”
14hex 200Product text22 Byte
16hex 220Hardware24 ByteHW-V1.00
Revision
17hex 230Firmware24 ByteFW-V1.00
Revisio
64hex400Configuration2 Byte0x0000~
0xFFFF		0x0000

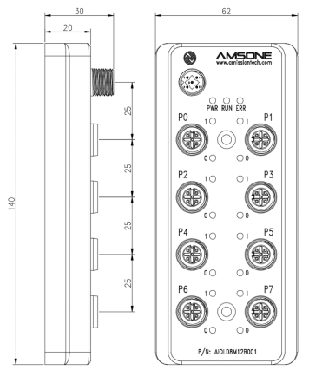

4.1 Dimensions



4.2 Physical data

Shell materialZinc alloy
Weight≈0.43Kg
Dimensions140 x 62 x 30 mm
InstallM4 Screw


4.3 Electrical parameters

Voltage18...30.2 V DC, per EN 61131-2
Ripple< 1 %
No load current≤ 100 mA
Total current1.6 A
Input signalPNP, type 3


4.4 Operating Conditions

Ambient temperature-25 °C … +70°C
Storage temperature-40 °C … +80°C
Protection DegreeIP67（Installed correctly）
