The IO-Link master station is a master gateway based on the IO-Link technical

specifications. The upper layer industrial Ethernet support protocol is PROFINET IO V2.33, and the lower layer on-site communication support protocol is IO-Link V1.1.3.

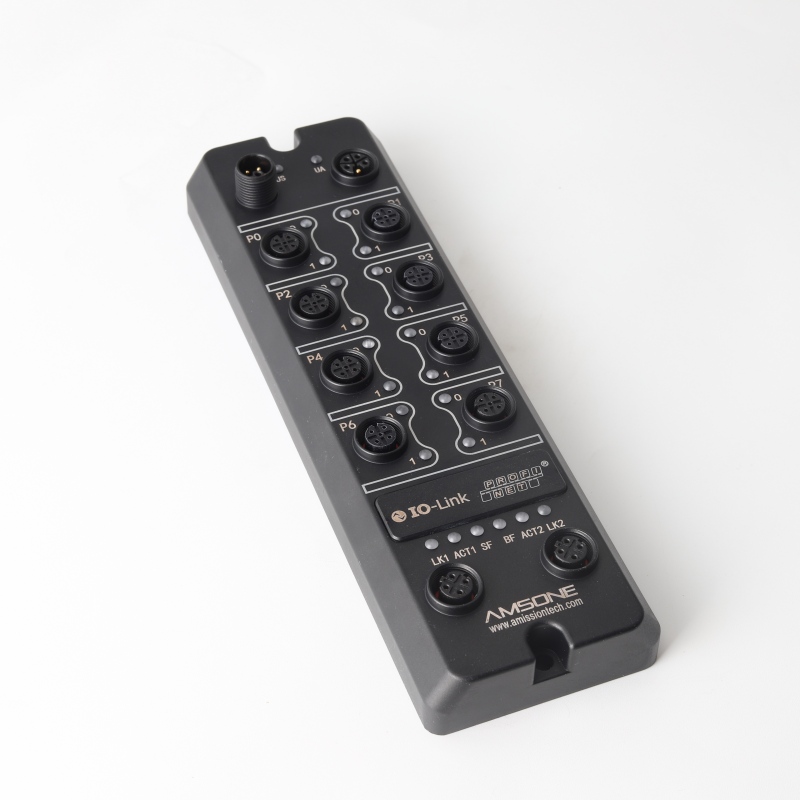

1.1 Product part number: AIOLM8M12A001 / IOL-PN-8M12A-FLM.

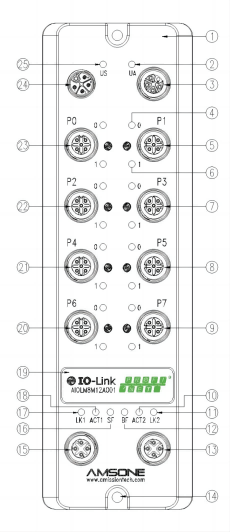

1.2 IO-Link Component parts.


1. Zinc alloy shell body.	2. UA Indicator light.
3. Power input port, M12 L.	4. 0 Indicator light.
5. IO Port 1, M12 A 5P.	6. 1 Indicator light.
7. IO Port 3, M12 A 5P.	8. IO Port 5, M12 A 5P.
9. IO Port 7, M12 A 5P.	10. ACT2 Indicator light.
11. LK2 Indicator light.	12. BF Indicator light.
13. Network output port, M12 D.	14. Installation holes.
15. Network input port, M12 D.	16. SF Indicator light.
17. LK1 Indicator light.	18. ACT1 Indicator light.
19. Upgrade Window.	20. IO Port 6, M12 A 5P.
21. IO Port 4, M12 A 5P.	22. IO Port 2, M12 A 5P.
23. IO Port 0, M12 A 5P.	24. Power output port, M12 L.
25. US Indicator light.

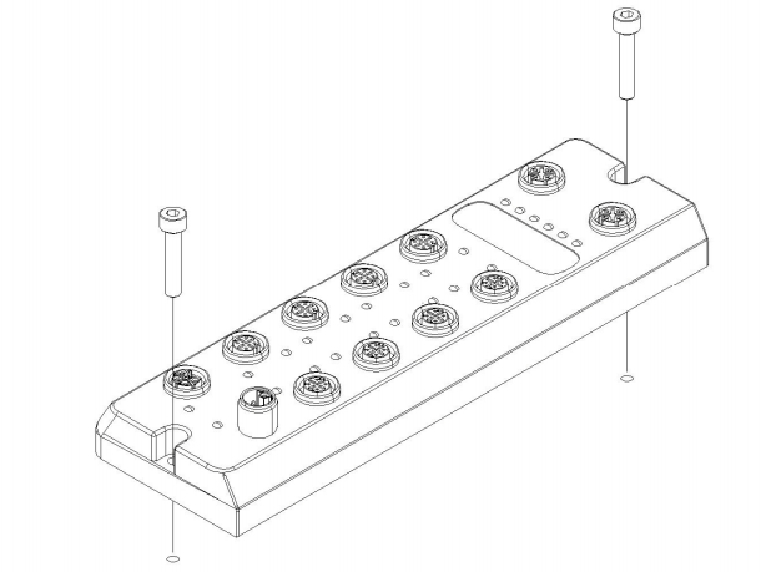

2.1 Installation tools Fix with 2 sets of M4 screws and gasket.

2.2 Power interface Power input female M12 L CODE， 24V DC

Power output male M12 L CODE，24V DC

2.3 IO-Link port M12 A CODE Female

2.4 PROFINET port M12 D CODE Female

3.1 IO-Link

Connection for IO-Link	M12, A-coded
IO-Link Port Class	Class A
Data transmission rate	COM1、COM2 、COM3
IO-Link Version	1.1.3
ISDU	Yes
Data Storage	Yes

3.2 PROFINET

PROFINET port	1 x 10Base-/100Base-Tx
Connection for PROFINET	M12 D-Coded
Cable types per IEEE 802.3	Shielded twisted pair min.STP CAT5e
Data transmission rate	10/100 Mbit/s
Max. cable length	100 M
Flow control	Half Duplex/Full Duplex(IEEE 802.33x-Pause)
Redundancy mode	MRP

3.3 LED Indicator light

LED	Status	Function
LK1 ACT1	Green light on	Start connecting，100Mbit/s
LK1 ACT1	Yellow light on	Profinet Transferring data
LK2 ACT2	Green light on	Start connecting，100Mbit/s
LK2 ACT2	Yellow light on	Profinet Transferring data
SF	Red light on	Error
BF	Red light on	Bus Error
US	Green light on	US（Pin4） Voltage normal
US	Red light on	US（Pin4）Low voltage
UA	Green light on	UA（Pin5）Voltage normal
UA	Red light on	UA（Pin5） Low voltage
0	Yellow light	Port Pin4 at“IO-Link mode”， No communication
	flashing	Port Pin4 at“IO-Link mode”， No communication
	Yellow light on	Port Pin4 at“IO-Link mode”， Communication is normal Port Pin4 at“SIO mode”at 1
	Yellow light off	Port Pin4 at“SIO mode”at 0 Port Pin4 at“SIO mode”at 1
1	Green light on	Port Pin2 DI at 1
1	Green light off	Port Pin2 DI at 0

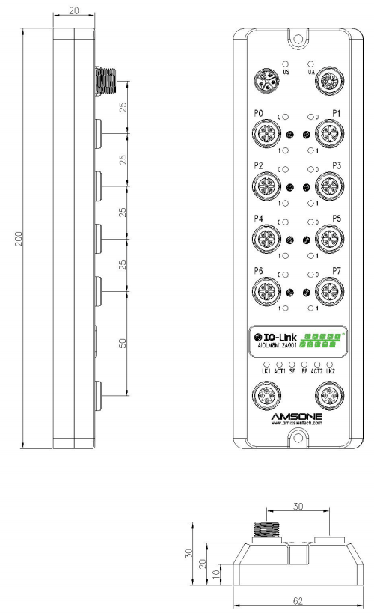

4.1 Dimensions

4.2 Physical parameters

Shell material	Zinc alloy
Weight	≤600 g
Dimensions (LxWxH)	200 x 62 x 30 mm
Install	M4 Screw
Power interface	M12 L CODE
Protection Degree	IP67

4.3 Electrical parameters

Power supply voltage	18 ... 30,2 V DC, at to EN 61131-2
Ripple wave	< 1 %
No load current	≤ 150 mA
US Total current	9A
UA Total current	9A

4.4 Operating conditions

Ambient temperature	-25 °C … +55°C
Storage temperature	-40 °C … +70°C
Protection Degree	IP67（All installed correctly）
