A Comprehensive Guide to Selecting Fieldbus Cables and Connectors for Industrial Automation

Views: 627 Author: Site Editor Publish Time: 2023-07-24 Origin: Site

Fieldbus cables and connectors are integral components in industrial automation systems, enabling seamless communication between various devices and controllers. With the diverse range of options available, selecting the right fieldbus cables and connectors for your specific application can be a daunting task. In this comprehensive guide, we will walk you through the key considerations and factors to help you make informed decisions and ensure optimal performance in your industrial automation setup.

Understanding Fieldbus Cables and Connectors:

Fieldbus cables are specially designed to transmit data and power signals between industrial devices and control systems. They are known for their robust construction and ability to withstand harsh industrial environments. Fieldbus connectors, on the other hand, are responsible for establishing reliable and secure connections between cables and devices.

Analyzing Your Application Requirements:

Before diving into the selection process, it's crucial to analyze the specific requirements of your industrial automation application. Consider factors such as data transmission speed, environmental conditions, cable length, and power requirements. Understanding these elements will help you determine the most suitable type of fieldbus cables and connectors for your system.


Types of Fieldbus Cables:

There are various types of fieldbus cables available, each tailored for different industrial automation needs. Some common types include:

Profibus DP (Decentralized Peripherals): Suitable for high-speed data transmission in industrial applications with complex network structures.

DeviceNet: Ideal for simple point-to-point connections and control of remote devices.

Modbus: A versatile option for connecting various devices to a supervisory control system.

Ethernet/IP: Designed for high-speed data transmission and integration with Ethernet networks.

Factors to Consider When Choosing Fieldbus Cables:

Several critical factors should guide your selection of fieldbus cables:

Cable Shielding: Ensure that the cables have proper shielding to protect against electromagnetic interference (EMI) and radio frequency interference (RFI).

Cable Length: Choose cables with the appropriate length to reach all devices in your automation system without compromising signal integrity.

Temperature and Chemical Resistance: Consider the environmental conditions in your facility and select cables that can withstand extreme temperatures and exposure to chemicals.

Flexibility and Durability: Opt for flexible and durable cables that can withstand constant movement and repetitive bending.

Types of Fieldbus Connectors:

Fieldbus connectors come in various configurations to accommodate different cable types and connection needs. Some common types include:

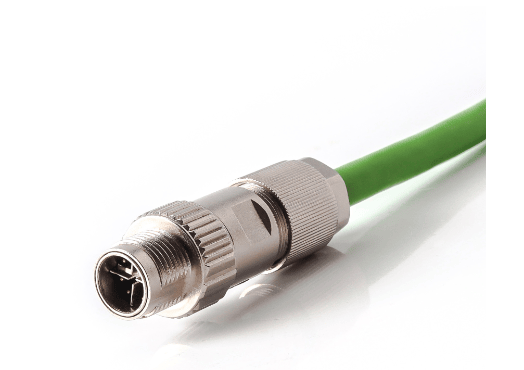

M12 Connectors: Known for their compact size and robustness, M12 connectors are widely used in industrial automation applications.

M8 Connectors: Smaller in size, M8 connectors are suitable for devices with limited space.

RJ45 Connectors: Commonly used in Ethernet-based fieldbus systems for high-speed data transmission.

Factors to Consider When Choosing Fieldbus Connectors:

Selecting the right fieldbus connectors is equally important. Consider these factors:

Connector Type: Ensure that the connector type matches the cable type to ensure a secure and reliable connection.

IP Rating: Check the IP rating to determine the connector's level of protection against dust and moisture.

Locking Mechanism: Choose connectors with secure locking mechanisms to prevent accidental disconnections.

Conclusion:

Selecting the appropriate fieldbus cables and connectors is a crucial step in optimizing the performance and reliability of your industrial automation system. By understanding your application requirements, analyzing cable and connector types, and considering essential factors, you can confidently choose the best combination for your specific needs. Investing time and effort into this selection process will ensure seamless communication and enhanced efficiency in your industrial automation setup.

×
