The Difference Between Push-Pull and Screw-Type Circular Connectors

Circular connectors play a vital role in various industries, facilitating secure and reliable connections between electronic devices. Among the diverse options available, two popular choices are push-pull and screw-type circular connectors. Understanding the differences between these connectors is essential to select the most suitable option for your specific application. In this article, we will delve into the characteristics of push-pull and screw-type circular connectors, enabling you to make informed decisions for your connectivity needs.

What are Circular Connectors?

Circular connectors, as the name suggests, have a cylindrical shape and are designed to establish electrical connections in a circular pattern. Their robust construction makes them ideal for applications where durability and resistance to environmental factors are crucial. Circular connectors are widely used in industries like aerospace, automotive, telecommunications, and industrial automation, among others.

Push-Pull Circular Connectors:

Push-pull circular connectors are characterized by their unique mechanism, where the connectors are inserted and removed by applying and releasing pressure in a specific direction. This design ensures quick and easy mating and unmating of the connectors without the need for additional tools.

Advantages of Push-Pull Connectors:

Fast and Secure Connection: The push-pull mechanism allows for rapid and secure connections, reducing downtime in critical applications.

Space-Saving: The design of push-pull connectors is compact, making them suitable for applications with limited space.

Ideal for Sensitive Environments: The push-pull locking mechanism ensures a reliable connection even in environments with vibrations or movement.

Applications of Push-Pull Connectors:

Push-pull circular connectors find extensive use in medical devices, audiovisual equipment, and consumer electronics, where frequent connections and disconnections are required.

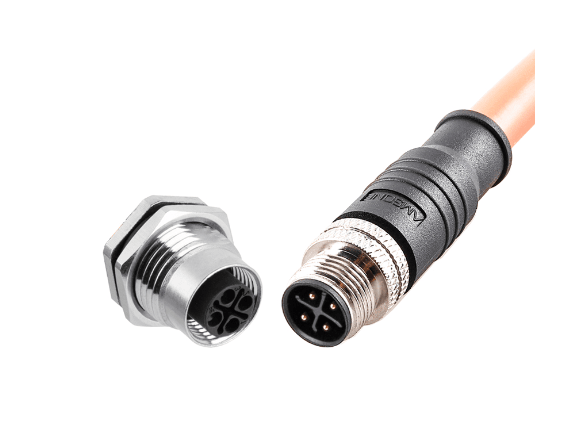

Screw-Type Circular Connectors: Screw-type circular connectors, on the other hand, utilize threaded couplings to establish and maintain connections. Users need to rotate the connector's outer shell to secure the connection firmly.

Advantages of Screw-Type Connectors:

High Stability: The threaded coupling offers excellent stability and reliability, making screw-type connectors suitable for applications where secure connections are essential.

Resistance to Environmental Factors: The threaded design provides enhanced protection against dust, moisture, and other environmental factors.

Suitable for High-Vibration Environments: Screw-type connectors are ideal for applications in rugged environments where vibrations are common.

Applications of Screw-Type Connectors:

Screw-type circular connectors are commonly used in military equipment, industrial machinery, and outdoor installations, where robust and dependable connections are vital.

Conclusion:

In summary, both push-pull and screw-type circular connectors offer unique advantages based on their distinct designs. Selecting the appropriate connector type depends on the specific requirements of your application. For applications that demand quick and effortless connections, push-pull connectors are an excellent choice. On the other hand, when stability and resistance to environmental factors are crucial, screw-type connectors prove to be highly reliable.

Before making a decision, consider factors such as the operating environment, frequency of connections, and space constraints. By understanding the differences between push-pull and screw-type circular connectors, you can confidently choose the connector type that best suits your connectivity needs and ensures seamless performance in your electronic devices and systems.
