What Are FieldBUS Cables, and How Do They Work?

Views: 1679 Author: Site Editor Publish Time: 2023-03-28 Origin: Site

Industrial networking needs wires that can do much more than just networking. These wires need to be much better than regular wires both in terms of technical performance and also in terms of physical structure. The FieldBUS cables make a great choice in this case.

Why are FieldBUS Cables different?

Previously networking cables were only facilitating direct serial communication. However, the FieldBUS wires allow multiple devices on the network to a single connection point. These cables connect to a controller that facilitates the spread of information across the whole networking unit. The data transfer happens in small sequential transmitter packets, which are multiplexed over time.

Due to this specialty of these cables, the point-to-point link between different devices on the network is eliminated. So, the network requires lesser lines in comparison to traditional parallel transfers. In traditional connections, only 2 devices are allowed to connect per connection. However, hundreds of devices can connect with these cables with one controller.

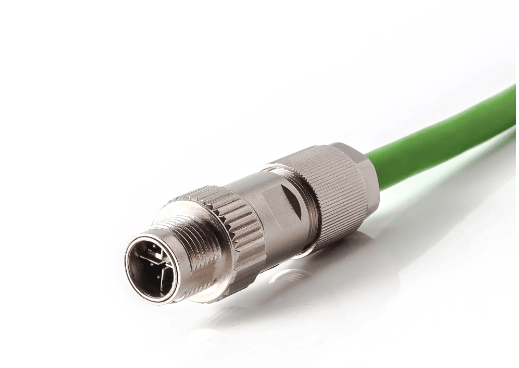

FieldBUS cables

Benefits of FieldBUS Cables

These cables bring multiple benefits in comparison with traditional networking cables. The top benefits of FieldBUS wires include

 the following:

· The cabling requirements significantly reduce when using these cables as one connection point connects to multiple devices.

· Less cabling for the network and easier connection make FieldBUS wires more cost-effective.

· This system's installation, organization, and troubleshooting are significantly easy due to fewer cables.

· These offer amazing reliability in comparison to parallel wiring. The short signal pathway makes the availability and speed of the system better.

· These are better in terms of protection against interference.

How do FieldBUS Cables work?

The FieldBUS system works on 4 main levels. Each of these levels has its significance in the network, and here is all you need to know about them:

Sensor Bus

It is the network's most basic FieldBUS level, containing only basic field devices. These devices include limit switches and optical level sensors that can transmit signals from sensors to controllers to the network's indicators, alarms, or other devices.

Device Bus

This level has similar functionality to the Sensor Bus network but operates on a bigger scale. The network is formed on bigger scales and connects to many devices, sensors, and actuators. It effectively adds motor control centers and speed drivers in the network to control individual components' speed.

Control Bus

This network is formed on a factory floor basically for communication at a higher level. It contains programmable logic controllers and smart instruments, all connected to human interface panels. So, a configuration can be created where humans can smartly control all electronics.

Enterprise Bus

Enterprise Bus, aka. Information-level networks connect all computers from multiple departments together. So, it forms inter-department connectivity, which is the most expansive and complex level of FieldBUS systems. It is effective for computer monitoring and file transfer.

Find out the best FieldBUS Cables and Connectors for your applications.

A major component of the network established with FieldBUS wires involves connections. So, you not only need to select the wires carefully but the connectors as well. Here you can find the best FieldBUS cables and connectors for your application.


×
