M24 Bayonet Connectors Step-by-Step Installation Guide

Views: 931 Author: Site Editor Publish Time: 2023-03-22 Origin: Site

M24 Bayonet Connectors are circular connectors with screw-on installation and multiple other features. However, to make the most out of these connectors, it is essential to install them correctly.

A step-by-step guide to installing M24 Bayonet Connectors

Once you get your connectors, follow the steps below for a perfect installation.

1. Get all the tools you need.

You need to start by grabbing all the tools that you need. The basic installation needs wire stripping and cutting tools, soldering tools, strain relief for the wire, and a crimping tool if you don't want to go with the soldering option.

Soldering or crimping depends on the connector type that you get. Apart from these tools, you may need the right wrench size to tightly install the connector side that goes into the body of your device.

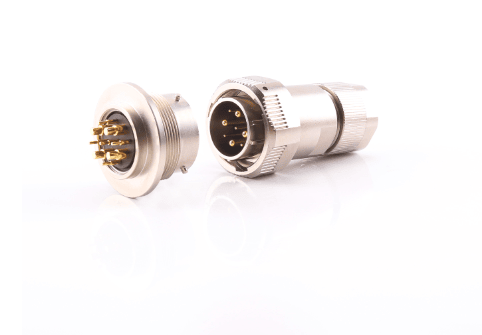

M24 Bayonet Connectors

2. Prepare wires.

Next, you need to prepare wires. It depends on the application that how many wires you need to prepare. However, having an equal amount of copper stripped out of the insulation is important. Additionally, as much as the wires can easily reach the pins you may solder or crimp, you must remove the main insulation. Once all the wires are prepared, you can move to the steps ahead.

3. Install strain relief.

After stripping the wires, you need to install the strain relief. Installing it beforehand is very important as once you have attached wires to the connector, you cannot pass the wire from strain relief until or unless the wire is not connected at the other end.

So, installing the strain relief on the wire at this installation stage would be a better choice. Also, be careful about its orientation for a better experience.

4. Connect wires to the device.

If you are working on the wire already attached to the device, you can skip this step and move to the next one right away. However, connect them to the device if you are working on new wires. There will be two types of this connection. In one type, both male and female connectors will be dangling out of the device.

In that case, you must pass the wire through its hole before connecting to the device. Otherwise, you only need to pass the wire through the hole on one side, as on the other side, the connector will be securely tightened on the body of your device.

5. Solder wires to the connector head and finish things up

The last thing you need to do is a seller or crimp wires on the connector heads in the M24 connector. Be careful about the wires on both sides, as you do not want to mess up the connection.

6. Test connection

After all the connections are made, connect both sides of the connector and test every device's function. Ensure perfect functionality.

Get the best quality M24 Bayonet Connectors here.

M24 Bayonet Connectors make a great choice for several applications. So, if your application also requires these for the best experience, check the gender, several pins, and category before buying your connector.


×
