Understanding The Technicalities Behind Special Drag Chain Cables

Views: 461 Author: Site Editor Publish Time: 2023-06-21 Origin: Site

Special drag chain cables, referred to as cable carrier cables or robot cables, are cables specifically created for dynamic scenarios where they endure consistent motion and bending.

Primarily used within cable carriers or drag chains, these specialized cables are prevalent in industrial automation, robotics, machine tools, and other machinery that involve repetitive and continuous movement.

Now, let's delve into the technical aspects of these cables and examine their noteworthy characteristics.

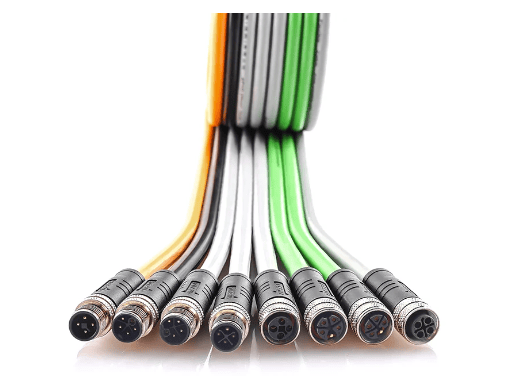

special drag.png

1. Cable design:

Special drag chain cables are meticulously crafted with careful consideration of their construction.

They feature multiple conductors, which can either be individually insulated or grouped within a single outer jacket.

These conductors are commonly manufactured using high-quality copper or aluminum materials, and they are typically stranded to provide increased flexibility and reduce the risk of breakage.

The specific quantity and size of the conductors vary depending on the unique demands of each application.

2. Flexibility and elasticity:

Flexibility stands as a vital attribute of special drag chain cables, as they are required to endure countless bending cycles while maintaining optimal electrical performance.

To achieve this, these cables are meticulously engineered using flexible materials and innovative designs.

The incorporation of stranded conductors and specialized fillers contributes to enhancing flexibility, enabling the cables to navigate cable carriers or drag chains with seamless movement and bending.

The flex life rating indicates the number of bending cycles a cable can withstand before the possibility of failure, and special drag chain cables are specifically designed to possess an extended flex life.

3. Minimal bending radii:

Drag chain cables function within specific bending radii or minimum bend diameters.

The bending radius refers to the smallest permissible radius at which the cable can bend without causing any harm to its internal components.

Special drag chain cables are purposefully designed with reduced bending radii, enabling them to flex and bend tightly while maintaining their performance and durability.

This characteristic facilitates efficient cable management and prevents excessive strain on the conductors and insulation, ensuring optimal functionality and longevity of the cables.

4. Higher wear and chemical resistance:

Special drag chain cables are designed to withstand abrasion and wear caused by constant movement and friction within cable carriers or drag chains.

They feature high-quality outer jackets that provide exceptional resistance to abrasion, ensuring the cables remain protected even in harsh environments.

These cables are also engineered to resist the damaging effects of oils, chemicals, and solvents commonly found in industrial settings.

The choice of insulation and jacket materials, such as thermoplastic elastomers (TPE), polyurethane (PUR), or polyvinyl chloride (PVC), enables them to withstand chemical exposure without degradation.

5. Electromagnetic Compatibility (EMC):

In industrial automation and robotics, sensitive electronic components are vulnerable to electromagnetic interference (EMI).

To address this concern, special drag chain cables employ shielding techniques to minimize EMI and ensure electromagnetic compatibility (EMC).

By incorporating shielding, these cables protect the signals transmitted within them from external electromagnetic fields, guaranteeing reliable and efficient data and power transmission.

6. Broad temperature range:

Special drag chain cables are designed to operate reliably in a broad temperature range.

They are equipped with insulation materials that can withstand high and low temperatures while maintaining their electrical properties.

This temperature resistance allows the cables to perform optimally in environments with extreme heat or cold, ensuring uninterrupted operation of machinery and equipment.
