The Basic Structure and Merits of Circular Connector

Views: 539 Author: Site Editor Publish Time: 2022-07-22 Origin: Site

The circular connection is a particular kind of connector having a circular mating surface and a cylindrical fundamental construction.

Due to their durable construction and dependability, circular connectors are particularly common in the communications and power transmission industries.

You have come to the right site if you want to learn more about the advantages of circular connections. We will go into great detail regarding the advantages of using circular connectors in this essay.

The basic structure of the circular connector

The following are the basic structure of a circular connector.

Contact pin

The circular connector's contact pin is essential to completing the electrical connection function.

An electrical connection is made by inserting the male and female contact pins that make up a contact pair, which are typically made of a female contact pin and a male contact.

Possession

Structural accessories and installation accessories are the two categories of accessories. accessories for structures, including positioning pins, clamp rings, coupling rings, cable clamps, and gaskets.

Accessories for mounting, including coils, bolts, screws, and nuts. The majority of accessories feature standard and common parts.

Insulator 

A base or mounting plate are other names for the insulator. The contact pieces are positioned and spaced according to the requirements, and the insulation capability in between contact pieces and between the contact piece and the shell is ensured.
Shell
The outer cover of the circular connector is referred to as the shell as well. It ensures alignment of the plug and socket during mating, protects the built-in insulating mounting plate and pins mechanically, and subsequently secures the connector to the object.

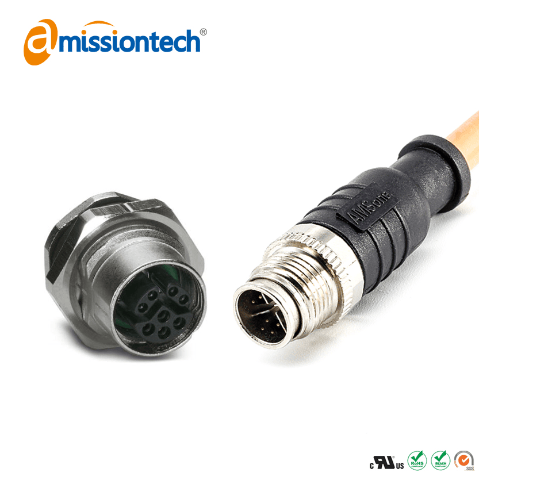

 circular connector

Benefits of using a circular connector

The benefits of using a circular connector in machines are as follows;

Compact Design

The typical circular connectors found in industrial settings are reasonably small. The connectors were reduced in size due to space restrictions. Because of its small size, it may be used in confined locations.

Not only that, but it also makes life easier and saves a lot of room. The best feature is that the size may be altered and varies depending on the manufacturer. Circular connectors are preferred because rectangular or other connectors cannot be shrunk.

Customization

The ability to adapt the circular connector to meet needs is its best feature.

Every aspect of the product, including the build quality, toughness, material choice, contact pins, and many others, can be tailored to the needs of the customer.

They will be tailored in following the transmission requirements for connectors used for power delivery and data transfer.

Durability

Well, the main reasons engineers like round shape connectors are durability and construction quality.

Such connectors can withstand extreme pressure, the weather, and the use of premium plastic and metal.

The connectors that are used to transfer power are constructed to minimize power loss and resist water damage. Because of this, circular connectors have surpassed rectangular connectors in popularity.

Contact us for your circular connector

To link large machines, circular connectors are very important in industries.

We did our best to provide thorough information on the advantages of the same in this article.

Please click here to contact us and learn more about our goods and services before making a purchase.

×
