Pin Arrangements in M9 Circular Connectors

Views: 964 Author: Site Editor Publish Time: 2022-07-20 Origin: Site

The sturdiness and endurance of circular connectors are well regarded, enabling their application in the most demanding applications.

Circular connectors are the most versatile and are used in manufacturing systems, aviation controllers, and commercial lighting.

One of the most crucial things to take into account when making a purchase decision is the configuration of the circular connector's pins and contacts.

To provide the best performance and signal dissemination plausible, each circular connector would have a unique arrangement of pin and socket connections.

These connections must be properly matched with your current setup to ensure that it complies with the standard specifications or if there are any pre-existing arrangements in place.

Here, we'll go through the fundamentals of circular connector pin configurations as well as how to invariably pick the best device for your requirements.

What Do Pin Configurations On Circular Connectors Mean?

There are several contacts on every connector, which are utilized to transmit the required power, data, or signal throughout the interconnection.

In order to transmit signals across one device to another, pin contacts on the male side of the connection are slid into sunken receptacles, whereby it may then be fitted into flush-mount abscesses on the female connector.

Determined by the amount as well as dimensions of the pins, the shape of the casing, and the sort of signals or data that needs to be transmitted or received.

These factors are considered in which pins would have to be organized into a certain layout when a connection necessitates many contacts.

Electrical equipment frequently have several pin designs, thus it is necessary to align male and female connectors properly to maintain interoperability.

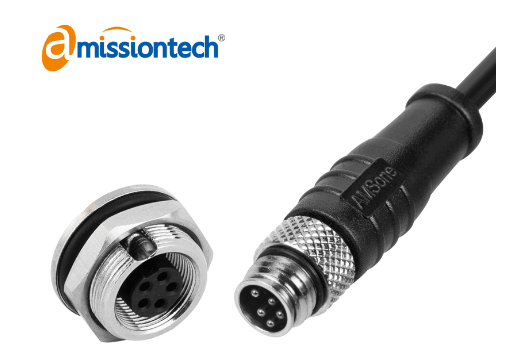

M9 connectors.png

How To Identify The Ideal Contact Configuration Required For Your Connector?

It is always essential to examine one's current setup or components to ascertain which connector contact arrangements are well-suited and fully functional with the existing system before deciding which connector one would need.

Immediately after the decision has been made on which connection arrangements are required for your network, one may search for a connector that satisfies these specifications by looking through the circular connector model publications.

 The information gotten will highlight all the important details one would need to establish such configuration.

For instance, the size 14 UTP6 male connector with 12 pins from the circular connector series would have the following part number:

Identifier: UTP61412P

UTP6 is the name of the model range, and size classification 14 is its description.

P represents pin, and pin number 12 denotes that it is indeed a male, while S indicates it's a female connector which sometimes means socket.

If you become doubtful of the contact configuration your circular connectors require, it is recommended to ask a supplier for advice.

You may select the ideal circle connection for your specific application with the aid of a supplier, who can provide a range of circular connectors including tech assistance and knowledge.

Partner with us for top-notch M9 Circular Connectors

As a top company that creates and produces the elite range of M9 circular connectors, we provide the greatest and top-notch goods that will provide the outcomes you want.

We would be happy to assist you if you have any questions about circular connectors and pin configurations or need help choosing the best option for your application. Kindly click here to see various offers and irresistible deals.
