Specifications and Parameters of Industrial Cables

Views: 284 Author: Site Editor Publish Time: 2024-05-23 Origin: Site

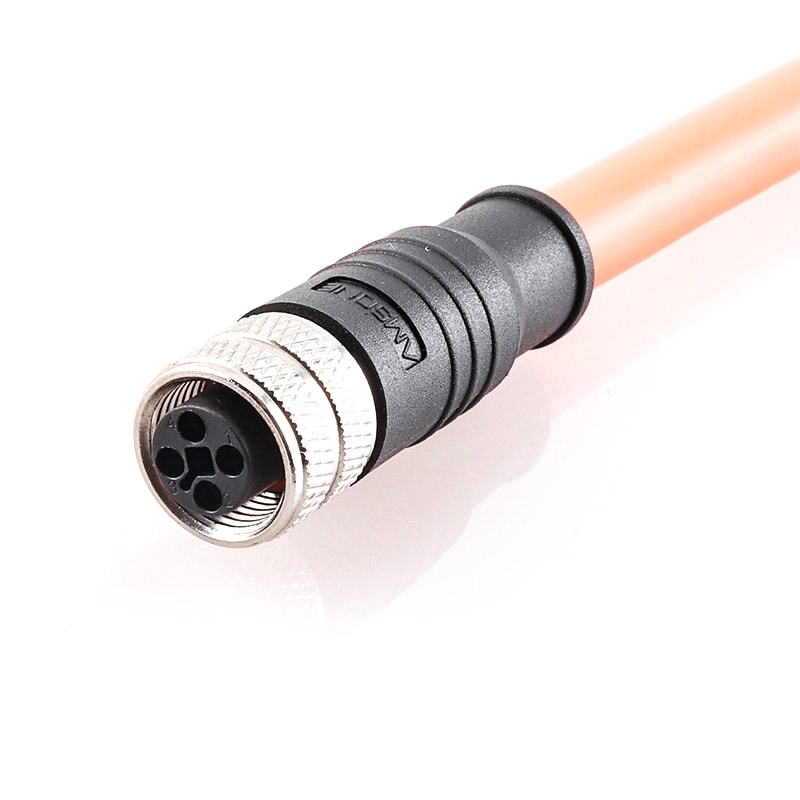

Industrial cables are vital components in various sectors, ensuring the reliable transmission of power, data, and signals. The specifications and parameters of these cables determine their suitability for different applications and environments. This article provides a comprehensive analysis of the key specifications and parameters of industrial cables, emphasizing their importance in ensuring performance, safety, and reliability.


Key Specifications and Parameters

1. Voltage Rating

The voltage rating of a cable indicates the maximum voltage it can handle safely. It is essential to match the cable's voltage rating with the system's operating voltage to prevent insulation breakdown and ensure safety. Voltage ratings are categorized as:

· Low Voltage (LV) Cables: Up to 1 kV, used in residential, commercial, and industrial applications for power distribution and lighting.

· Medium Voltage (MV) Cables: From 1 kV to 35 kV, used for power distribution in industrial facilities and utility networks.

· High Voltage (HV) Cables: Above 35 kV, used in power transmission networks.

2. Conductor Material and Size

The conductor material and cross-sectional area are critical for determining the cable's current-carrying capacity. Common conductor materials include:

· Copper: Offers excellent electrical conductivity and mechanical strength, making it the preferred choice for most applications.

· Aluminum: Lighter and less expensive than copper, used in applications where weight and cost are significant considerations.

The cross-sectional area of the conductor, measured in square millimeters (mm²), affects the cable's current-carrying capacity. Larger conductors can carry more current and are used in high-power applications.

3. Insulation Material

The insulation material provides electrical isolation and protects the conductor from environmental factors. Key insulation materials include:

· Polyvinyl Chloride (PVC): Offers good insulation properties, flexibility, and flame retardancy. Suitable for general-purpose applications.

· Cross-linked Polyethylene (XLPE): Known for its high-temperature resistance and excellent electrical properties. Commonly used in high-voltage and underground cables.

· Ethylene Propylene Rubber (EPR): Provides superior flexibility and excellent thermal and chemical resistance, suitable for harsh environments.

4. Temperature Rating

The temperature rating of a cable indicates the maximum temperature it can withstand during operation. Exceeding this temperature can degrade the insulation and reduce the cable's lifespan. Common temperature ratings include:

· Normal Operating Temperature: Typically 60°C to 90°C for standard cables.

· High-Temperature Cables: Rated up to 125°C or higher for specialized applications.

5. Shielding

Shielding is used to protect the cable from electromagnetic interference (EMI) and radio frequency interference (RFI). Shielding can be applied to individual conductors, pairs, or the entire cable. Common shielding materials include:

· Braided Copper: Provides effective EMI protection and mechanical strength.

· Aluminum Foil: Lightweight and cost-effective, often combined with braided shielding for enhanced performance.

· Copper Tape: Used in high-frequency applications for excellent shielding.

6. Mechanical Protection

Mechanical protection ensures the cable's durability in harsh environments. This includes armoring and robust outer sheaths. Types of mechanical protection include:

· Steel Wire Armor (SWA): Provides excellent protection against physical damage and is commonly used in power cables.

· Steel Tape Armor (STA): Offers good protection while being more flexible than SWA.

· Aluminum Armor: Lighter than steel, used where weight is a concern.

7. Fire Performance

Fire performance is crucial for FieldBUS cables used in areas where fire safety is paramount. Important fire performance parameters include:

· Flame Retardancy: The ability of the cable to resist burning and prevent the spread of flames. Flame retardant materials are used to enhance safety.

· Fire Resistance: The ability of the cable to maintain circuit integrity during a fire. Fire-resistant cables are used in emergency systems to ensure continued operation during a fire.

· Low Smoke Zero Halogen (LSZH): Cables that emit minimal smoke and no toxic halogen gases when exposed to fire, making them suitable for confined spaces and areas with high human occupancy.

8. Environmental Resistance

Environmental resistance refers to the cable's ability to withstand various environmental factors such as moisture, chemicals, UV radiation, and mechanical wear. Key environmental resistance parameters include:

· Water Resistance: Cables designed for wet or submerged environments have special sheaths and sealants to prevent water ingress.

· Chemical Resistance: Cables exposed to chemicals, oils, and solvents must have sheaths made of materials resistant to these substances.

· UV Resistance: Outdoor cables require UV-resistant sheaths to prevent degradation from sunlight exposure.

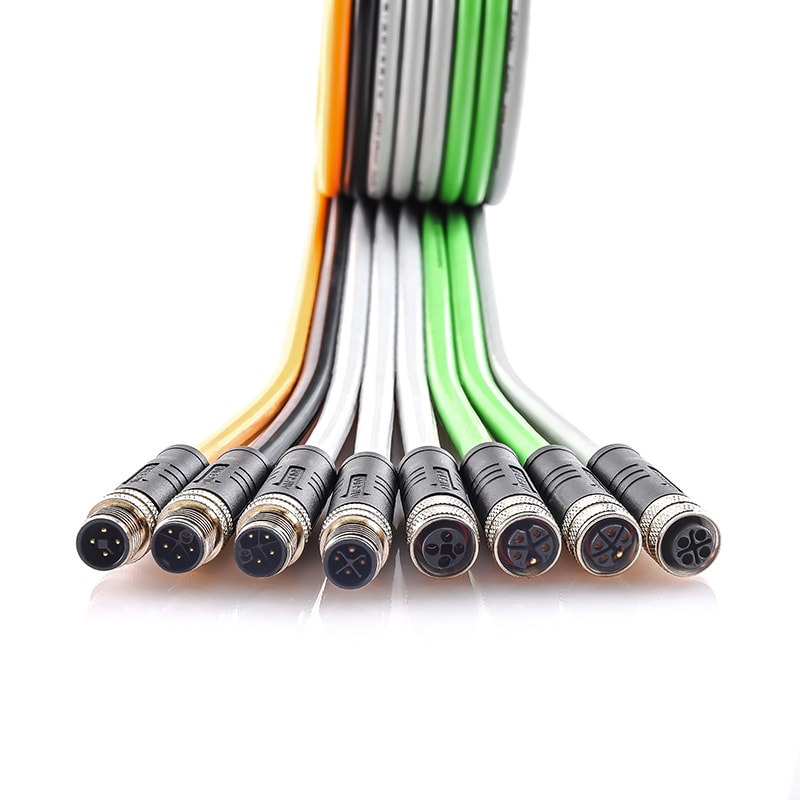

Common Industrial Cable Types

Based on the discussed specifications and parameters, common types of industrial cables include:

· Power Cables: Used for transmitting electrical power in various industrial settings. They are designed with high current-carrying capacity, robust insulation, and mechanical protection.

· Control Cables: Used for transmitting control signals and data. These cables are often shielded to prevent EMI and ensure signal integrity.

· Instrumentation Cables: Used for connecting various instruments and sensors. They require high precision and stability, often employing shielding to reduce interference.

· Flexible Cables: Designed for applications requiring frequent movement or flexing, such as in robotics and automated machinery. They feature flexible conductors and durable, flexible sheaths.

· Specialty Cables: Designed for specific environments or requirements, such as high-temperature cables, fire-resistant cables, and cables with enhanced chemical resistance.


Selection Criteria

Choosing the right industrial cable involves considering several factors:

1. Electrical Requirements: Voltage rating, current-carrying capacity, and electrical properties must match the application's needs.

2. Environmental Conditions: Temperature, humidity, chemical exposure, and mechanical stresses in the installation environment.

3. Regulatory Standards: Compliance with relevant national and international standards, such as IEC, UL, and IEEE, ensures safety and reliability.

4. Cost Considerations: Balancing performance and cost to achieve the best value for the specific application.

5. Installation Requirements: Ease of installation, flexibility, and compatibility with existing infrastructure.

Understanding the specifications and parameters of industrial cables is essential for selecting the right cable for any application. Voltage rating, conductor material and size, insulation type, temperature rating, shielding, mechanical protection, fire performance, and environmental resistance all play crucial roles in determining a cable's suitability. By thoroughly analyzing these factors, industries can ensure the reliability, safety, and efficiency of their power and signal transmission systems, ultimately enhancing operational performance and safety.




×
