Power and Electrical Design Requirements for Custom Cable Assemblies

In today’s industries, custom cable assemblies play a critical role in connecting and powering equipment across fields like industrial automation, medical devices, aerospace, and automotive systems. These assemblies are not just bundles of wires—they are precision-engineered components that must meet strict performance, safety, and reliability standards. Understanding the power and electrical design requirements is essential to ensure that your custom cable assemblies perform as expected in their demanding environments.

What Are Custom Cable Assemblies?

To begin, a custom cable assembly is a tailored combination of cables, connectors, and components designed for a specific application. Unlike standard off-the-shelf cables, custom assemblies are made to meet unique system requirements. Whether used in factory automation, high-precision medical equipment, or aerospace systems, custom cable assemblies offer better performance, longer life, and improved organization within equipment.

Understanding Power Requirements

Designing reliable custom cable assemblies starts with understanding the power requirements of the application. This includes evaluating both voltage and current needs to ensure safety and functionality.

Voltage

Voltage represents the electrical potential difference between two points. Designers must select the proper insulation type and thickness to prevent electrical breakdown, arcing, or short-circuiting. For example, high-voltage applications may use Teflon or polyethylene insulation, which provides superior dielectric strength compared to standard PVC jackets.

Current

Current measures the flow of electricity through the cable. Exceeding the current capacity can lead to overheating, insulation damage, or even fire. Cable designers select the correct wire gauge (AWG) and conductor material to match current requirements. Copper is most commonly used due to its excellent conductivity, but aluminum and steel are sometimes chosen for their weight and mechanical properties. In simple terms, just as a larger pipe carries more water, a larger wire diameter carries more electrical current safely.

Environmental Factors in Cable Design

Beyond voltage and current, environmental factors play a major role in cable assembly design. The conditions where the cable will be used—such as high temperature, exposure to chemicals, moisture, or vibration—determine the choice of materials.

For instance, polyurethane and Teflon jackets resist harsh chemicals and oils, making them ideal for rugged environments. Silicone or Teflon jackets also withstand higher temperatures better than standard PVC or polyethylene. Selecting the right materials ensures durability and reliable performance over the lifetime of the cable.

Shielding for Electromagnetic Interference (EMI)

EMI is another major concern when designing custom cable assemblies, especially in industries with sensitive electronics. Shielding protects signal integrity and prevents malfunctions.

Two common shielding methods are braided wire and foil shields. Braided shields are flexible and excellent for protecting against low-frequency EMI, making them ideal for cables that require movement. Foil shields provide better high-frequency interference protection but are less durable in applications involving repeated bending. The choice of shielding depends on the specific environment and usage of the cable.

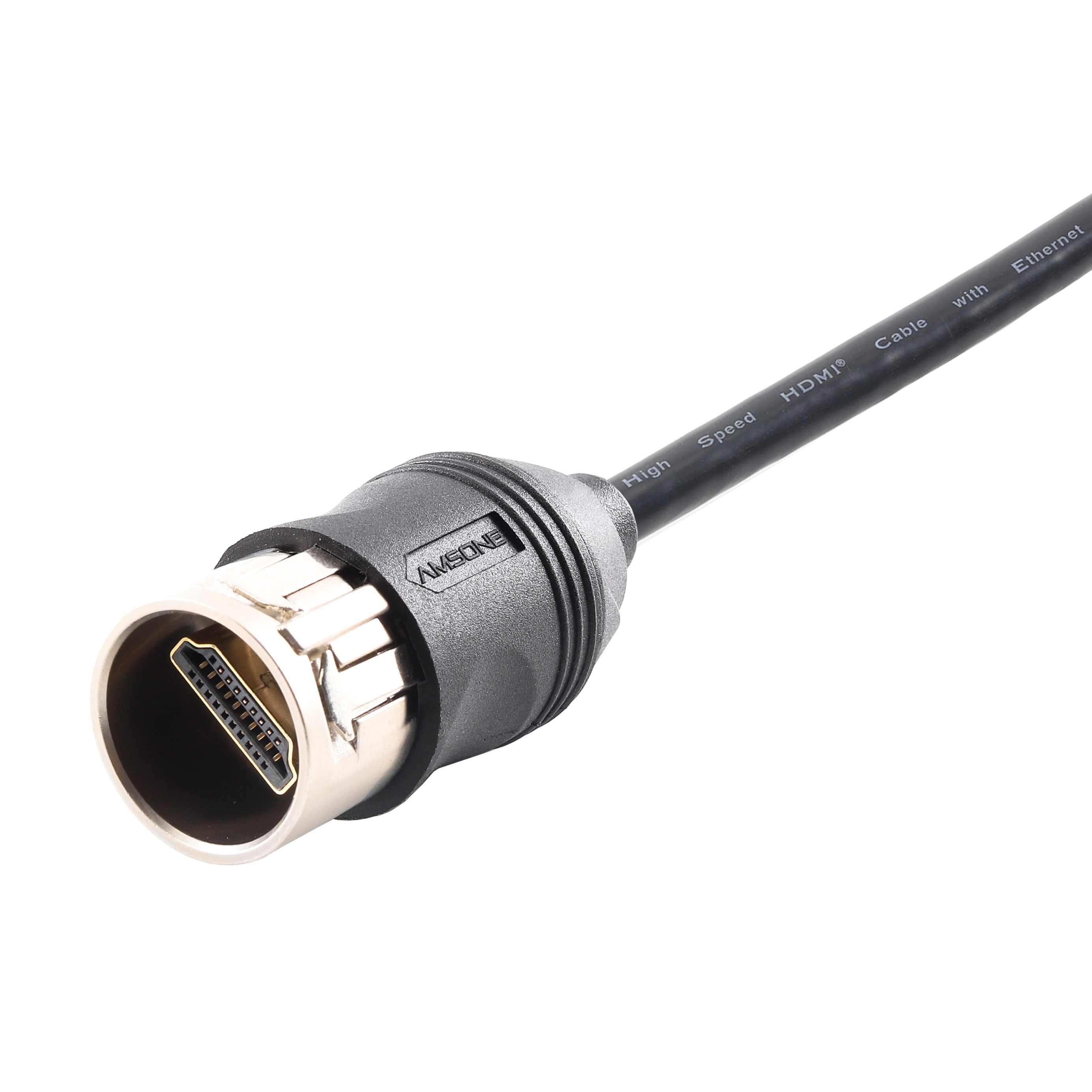

Connectors and Termination Techniques

Equally important are the connectors and termination methods used in the assembly. The right connector ensures durability and maintains signal quality. Considerations include pin count, current rating, mating cycles, and ease of installation.

High-power applications require heavy-duty connectors that can handle larger currents safely. Data cables focus more on signal integrity. Common termination methods include crimping, soldering, and insulation displacement. Crimping is fast and reliable for mass production, while soldering provides strong, permanent connections. For environments with high vibration, adding strain relief or potting compounds helps prevent failures over time.

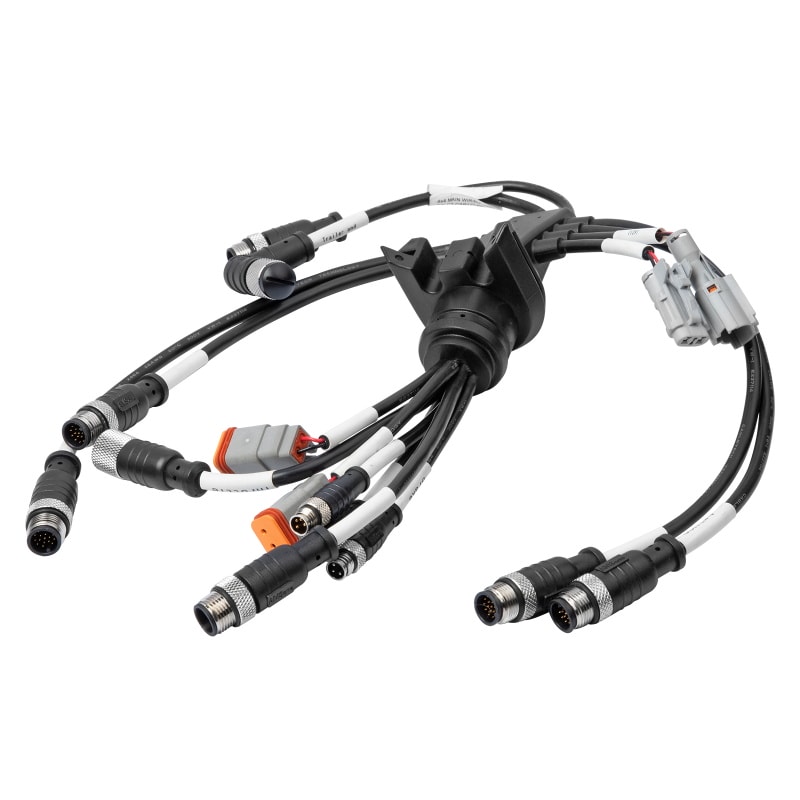

What Is a Custom Wire Harness?

A custom wire harness, also known as a cable harness, organizes and secures multiple wires and connectors into a single unified system. It simplifies electrical routing and transmits power and signals efficiently within complex devices.

The Advantages of Custom Wire Harnesses

Custom wire harnesses offer significant benefits that improve both production and performance:

• Simplified Installation: Pre-configured harnesses reduce installation time and avoid wiring errors.

• Streamlined Assembly: Fewer complex wiring diagrams are needed, saving time and labor.

• Reduced Labor Costs: Plug-and-play design minimizes manual tasks like cutting, stripping, and soldering.

• Space Optimization: Bundled and routed wiring saves space, which is crucial in tight applications.

• Customization Options: Designers can choose colors, labels, shielding, and other custom features to meet exact specifications.

Designing a Custom Wire Harness

Creating a successful custom wire harness requires careful planning and expertise:

• Application Analysis: Define terminal types, connector models, wire count, and length.

• Schematic Design: Use diagrams to map wire routing, connections, and components

• Wire and Connector Selection: Choose based on voltage, current capacity, and compatibility.

• Routing and Length: Optimize for minimal interference and easy installation.

• Environmental Considerations: Select materials for humidity, vibration, and temperature resistance.

• Flexibility: Allow for future upgrades by including additional wires or connectors.

• Compliance: Adhere to industry standards and certifications (ISO, UL, RoHS) for safety and reliability.

Experienced Manufacturing Collaboration: Partner with certified manufacturers experienced in IPC standards (CSE, CIT, CIS) to ensure quality and consistency.

Conclusion

Power and electrical design requirements are the backbone of any successful custom cable assembly project. From selecting the right materials to ensuring proper shielding and connector compatibility, every detail matters. Working with experienced manufacturers can help you design and produce custom cable assemblies and wire harnesses that meet your exact application needs with safety, reliability, and performance.
