Everything You Need to Know about Fieldbus Cables

Views: 1410 Author: Site Editor Publish Time: 2021-07-22 Origin: Site

What is fieldbus cable

Fieldbus cables are used in measurement and control systems for connecting the field devices with the centre. In contrast to instrumentation cables, fieldbuses should be dimensioned for considerably higher data rates. Control functions and the energy supply of the terminal devices as well as additional services such as active wear monitoring for the terminal devices are transmitted via these connections.

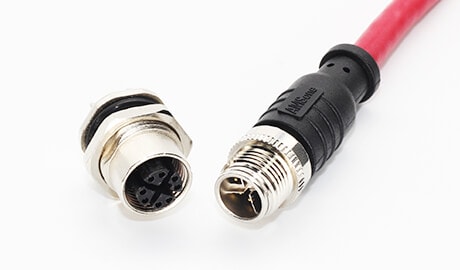

fieldbus cable

What is fieldbus

Fieldbus is an industrial network system for real-time distributed control. It is a way to connect instruments in a manufacturing plant. Fieldbus works on a network structure which typically allows daisy-chain, star, ring, branch, and tree network topologies. Previously, computers were connected using RS-232 (serial connections) by which only two devices could communicate. This would be the equivalent of the currently used 4–20 mA communication scheme which requires that each device have its own communication point at the controller level, while the fieldbus is the equivalent of the current LAN-type connections, which require only one communication point at the controller level and allow multiple (hundreds) of analog and digital points to be connected at the same time. This reduces both the length of the cable required and the number of cables required. Furthermore, since devices that communicate through fieldbus require a microprocessor, multiple points are typically provided by the same device. Some fieldbus devices now support control schemes such as PID control on the device side instead of forcing the controller to do the processing.



What we can provide

FieldBUS

- Based on PROFIBUS-PA, PROFIBUS-DP, and PROFIBUS-FMS cabling and connection technology

- Twisted pair cable or optical cable options for ProfiBus (RS-485)

- Degree of protection IP67

- Perfect EMC shielding solution

- Pre-molded cables and panel receptacles with Solder and PCB connection available

- Customized solution available in various types, lengths, and assemblies

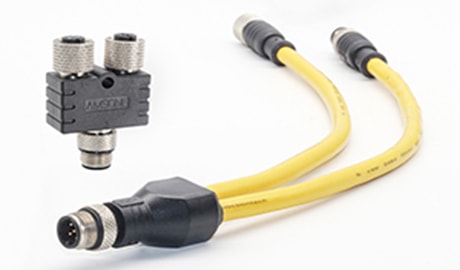

Y/T splitter

- Anti-vibration design

- Shielded solution available

- Customized solution available in various types, lengths, and assemblies

Y/T splitter

ProfiNet/EatherCAT

- According to PROFIBUS standard based on industrial EtherNet technology

- Data transmission bandwidth from 100 Mbps up to 10Gbps

- Components in accordance with Profinet A/B/C application

- Degree of protection IP67

- Perfect EMC shielding solution

- Pre-molded cables and panel receptacles with Solder and PCB connection available

- Customized solution available in various types, lengths, and assemblies



Why choose us

AMSone FieldBUS cables and connectors are quality components for automation processes. With their convincing characteristics, for example high functionality, maximum EMI/RFI safety, quick connection and compact design, our FieldBUS have proven to be successful in various machines and facilities.



Further typical characteristics of our ProfiNet, CAN-BUS, DeviceNet, ProfiBUS, EtherNet cables and connectors, multiport distribution box and T&Y splitter or adapters are, in addition to the high quality standards, their tested quick connection solutions and compact construction method.



Thanks to AMSone FieldBUS, sensors and actuators are safely and reliably connected with the control unit during the transfer of signal and data. Fully shielded Zinc die-cast housings available for a maximum functionality even in extreme disruptive factors. If you are looking for a reliable merchandise of fieldbus cables and connectors, please don't hesitate to contact us now!

×
