How to Diagnose and Repair M12 Code Connector Cable Issues

Views: 1145 Author: Site Editor Publish Time: 2022-01-11 Origin: Site

M12 connections are circular connectors with a 12-mm locking thread that are commonly used in factory automation applications for sensors, actuators, Fieldbus, and industrial Ethernet.

They are often rated IP65, IP68, or IP69K, making them appropriate for washdown and corrosive situations.

M12 code connectors are a critical component of any electrical system. If they don't function properly, the rest of the network will as well.

The performance of a defective connector would be slowed by any type of disruption.

Contacting  a good manufacturer of the product is advisable whenever you are in need to for M12 code connectors to transmit power or data in your organization.

Here, we'll look at some of the symptoms that suggest whether or not your code connector is working up to par.

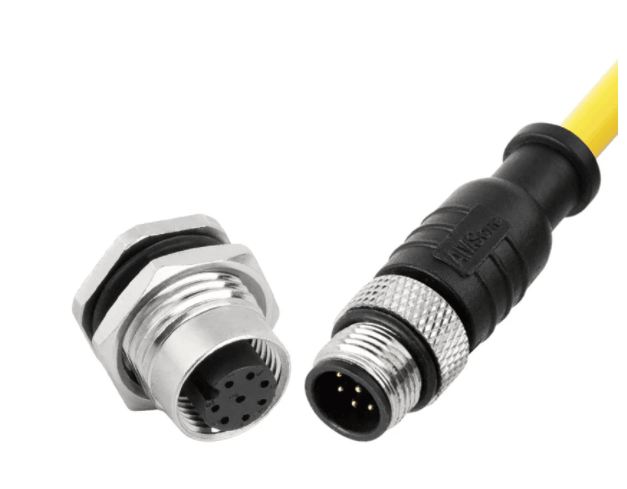

M12 code connectors

· Your connection is always sluggish.

There's a good probability you have a damaged connector if your connection continues dropping or running slowly.

A tear in your cable can also compromise the internal wire connection, resulting in a short circuit.

Try straightening a bent cable with your hands if you discover one. You'll have to replace it if it's too worn out.

· With A Wiggle, The Connection Was Restored

A failed connection can be re-established by wriggling the connector.

If you do this too frequently, you'll have a broken connector on your hands.

A plastic lever integrated into M12 code connector locks the cable in place within the adapter port. The connection will fall if this lever breaks.


· Frequently loses contact.

If the light does not turn on when you insert the cable into the adapter, it could be an issue with the cable or the connector.

If you observe display warnings like 'network connection lost' or 'no connection,' something is amiss with the M12 cable connector on the system.

In such circumstances, double-check that the cable is correctly connected. A defective cable, even if correctly connected, will not work otherwise.


· Do You Continually Replace Them?

This is the clearest indication that your network ecology requires attention. If replacing the M12 code connector solves the problem, then everything is fine.

However, if the problem persists with the new connector, the issue is network related. It's possible that anything is wrong.


· Continuity Issues Must Be Tested

Continuity issues might develop if there are any broken connectors or bends in a cable.

A cut or sliced cable, any type of penetration by things such as a nail, staple, screw, or other object, or electromagnetic interference can all cause them.

Check for any of these causes if you can visually inspect the code connector. If not, use a continuity tester to check it.

This is accomplished by the use of an electrical gadget. Such a device can help detect problems caused by EMI, or radio frequency interference.

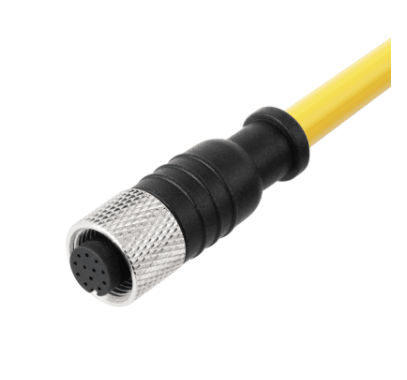

 M12 code connectors

· Troubleshooting Connectivity Problems

The most common source of these problems is a defective cable. Consider running a brief test to see if the connection is working.

To test, connect the suspected connector to another computer's network device or network connector.

The jack into which you plug the connector is usually part of a network adaptor.

It serves as a connection point between a computer or network device and a network cable.


Contact us for premium M12 code connectors

If you are looking to buy new M12 code connector for transmission of data and electric signals, you can navigate to our  page from here. We have all the code connector to fulfill your requirements.

Do contact us for a durable and highly-efficient code connector.
