How to Choose the Right M12 Connector for Your Application

M12 connectors have become a standard in industrial automation due to their compact size, IP67 protection, and versatility in connecting various signal types. With over twenty different M12 connector codings available, finding the right one for your application can be challenging. This guide will help you understand the key factors to consider when choosing the right M12 connector and provide an overview of the most commonly used coding types.

1. Understanding M12 Coding Types

One of the primary reasons for the success of M12 connectors is their coded keyways, which prevent accidental cross-connection of different signal types. M12 connectors are coded with alphabetical letters from A to Y, but the most frequently used codes are A, B, C, D, and X. Each coding is designed for specific signal and power applications:

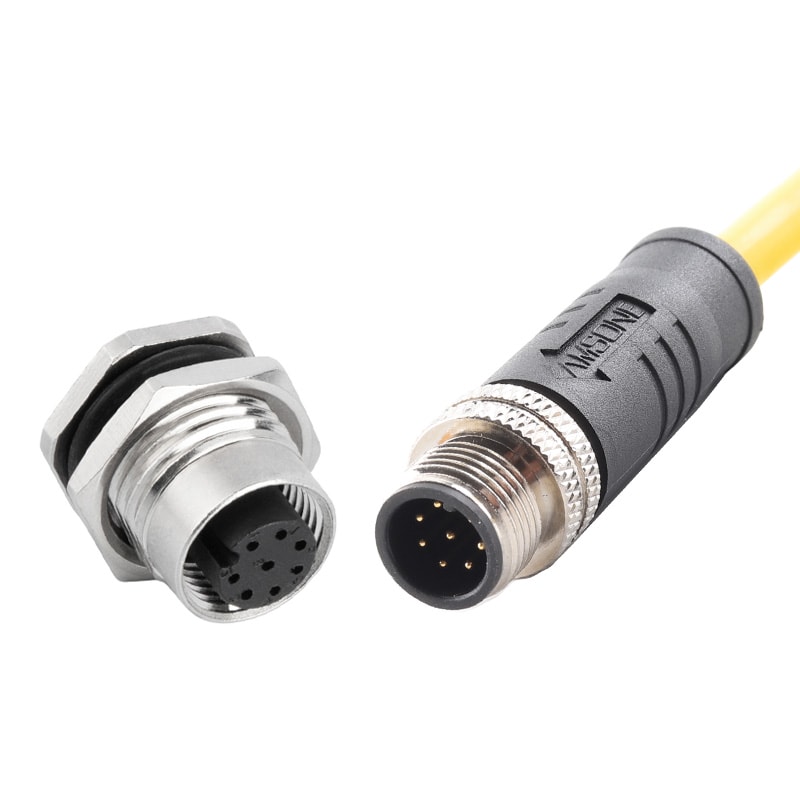

• A-coded: Primarily used for signal transmission, DC power, and some data applications. Available with 2 to 17 poles, these connectors are commonly used with sensors, actuators, IO-Link devices, and peripherals.

• B-coded: More common in Europe, B-coded connectors are used for older control systems or fieldbuses like Profibus and Interbus. They typically come with 5 poles.

• C-coded: These connectors are used for AC-powered sensors and actuators. They are available with 3 to 6 poles and are often replaced by S-coded connectors.

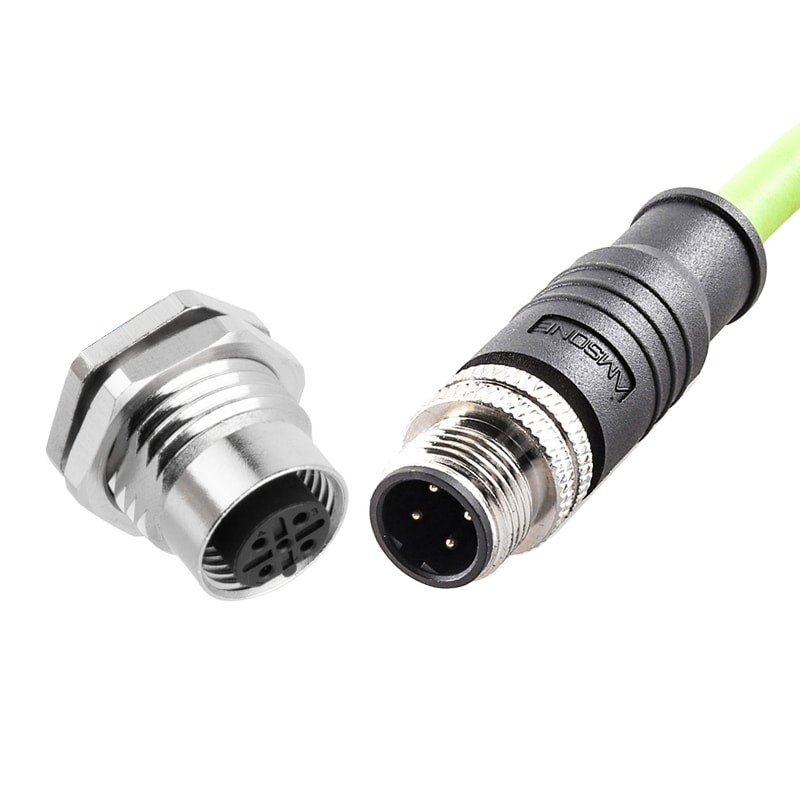

• D-coded: Ideal for connecting field devices to industrial Ethernet networks, D-coded connectors support protocols like ProfiNet, EtherCAT, and Ethernet/IP. These connectors are 4-pole and commonly used with CAT5e cables.

• X-coded: Designed for high-speed data transmission, X-coded connectors can support speeds up to 10 Gbit/s. With 8 poles, they are used in robust Industrial Ethernet applications.

2. Important Factors to Consider

When selecting an M12 connector, there are several factors beyond coding to consider:

a. Number of Poles

The number of poles or pins in a connector depends on your application’s needs. Ensure that the connector has the correct number of poles for transmitting signals, data, or power.

b. Straight or Angled Connector

Determine whether your application requires a straight or angled connector. Straight connectors are ideal for standard installations, while angled connectors are better for tight spaces or where cable routing needs to be more flexible.

c. Gender

M12 connectors come in male and female versions. Be sure to select the correct gender for your system, as improper connections can cause malfunction.

d. Environmental Factors

M12 connectors are designed to withstand harsh environments, but choosing the right material is crucial to ensure long-lasting performance. Consider factors such as dirt, dust, liquids, chemicals, mechanical stress, vibration, and temperature variations.

3. Common Materials for M12 Connectors

Choosing the right material for your M12 connector is vital for ensuring durability and protection in tough conditions. Some common materials include:

• PVC Thermoplastic (TP): Ideal for relatively clean industrial environments with little exposure to extreme temperature variations. It is economical and available in many colors. IP rating: IP65/IP67.

• PUR Polyurethane: Suitable for environments exposed to natural elements or where constant bending and abrasion occur. IP rating: IP65/IP67.

• TPE (Thermoplastic Elastomer): This material is resistant to chemicals and welding sparks and offers protection from oil and low temperatures. It is strong but cannot withstand stretching or twisting.

• Shielding Materials: Recommended for environments with vibration and extreme temperatures, these materials protect against signal interference and are ideal for data transfer in noisy environments. IP rating: IP65/IP67/IP68/IP69K.

4. M12 Connector Overview

Here is a brief summary of the most used M12 connectors:

• A-coded connectors: Widely used for sensors, actuators, and peripherals. Common for IO-Link devices.

• B-coded connectors: Typically found in older control systems and fieldbuses in Europe.

• C-coded connectors: Used for AC-powered devices.

• D-coded connectors: Ideal for Industrial Ethernet and field devices.

• X-coded connectors: Best for high-speed data transmission in Industrial Ethernet environments.

Selecting the right M12 connector may seem daunting, but understanding the coding types and considering factors like the number of poles, environmental conditions, and connector material can help narrow your choices. A-coded connectors are widely used for signal transmission, while X-coded connectors are ideal for high-speed data applications. For more specific applications, B, C, and D-coded connectors may be appropriate.

If you're still unsure which M12 connector best suits your application, contacting a representative or seeking expert advice can ensure you choose the most reliable and efficient solution for your industrial automation needs.
