Efficient I/O Termination Methods: Choosing the Right Protocol for OEM and Custom Machines

In the world of OEM and custom machine manufacturing, optimizing I/O (input/output) termination is crucial to reducing integration time and overall system costs. As machine designs become more complex and the demand for efficient wiring increases, manufacturers are increasingly looking for ways to move away from traditional wiring and cable setups from field devices to enclosure terminal strips. Instead, they seek solutions that allow for terminating I/O at the edge of the system, closer to the field devices, in order to minimize bulky wire bundles and improve overall system efficiency.

However, with various network protocols and hardware options available, it can be challenging to determine the most effective solution. This article will explore several approaches to I/O termination, focusing on network protocols, distributed I/O, and the use of remote I/O systems.

Understanding the Role of Network Protocols in I/O Termination

The emergence of industrial Ethernet networks was driven by the need to address the inefficiencies associated with traditional wiring. These networks allow machine builders to reduce the amount of wiring required by converting traditional I/O signals into digital communication signals. This results in a significant reduction in wiring costs, especially for systems that require long wire runs.

When selecting a network protocol, there are several options available, including Modbus TCP/UDP, EtherNet/IP, EtherCAT, and Profinet. The choice of protocol will depend on the specific application and the existing infrastructure within the manufacturing facility.

Ethernet-based protocols are particularly attractive because they offer reliable communication in industrial environments while supporting high-speed data transfer. For many applications, Ethernet networks can meet or exceed the necessary machine cycle times, making them an ideal solution for most use cases.

If you are already working with a preferred vendor or have an existing network protocol in place, it may make sense to stick with that vendor's native network protocol. This ensures ease of implementation and minimizes integration time. On the other hand, if your system requires devices from multiple vendors, it is advisable to choose a protocol that is widely supported across different devices. In this case, industrial Ethernet protocols offer a universal solution that accommodates devices from various manufacturers, allowing for better integration and reduced costs.

Moreover, the ability to support multiple protocols through gateways and converters makes industrial Ethernet even more flexible, enabling you to select best-in-class components without worrying about compatibility issues.

The Importance of Distributed I/O in Larger Systems

For larger systems, distributed I/O can provide significant benefits. When dealing with complex machinery or systems spread across large areas, traditional point-to-point wiring becomes cumbersome and costly. Distributed I/O, on the other hand, allows you to locate I/O modules closer to field devices, minimizing the need for long wire runs.

In smaller systems, where wire runs are relatively short, distributed I/O may not offer significant benefits. In such cases, simpler solutions such as using IP67-rated connectors or tool-free lever terminal blocks can streamline the integration process. These connectors are easy to mount and provide a convenient way to connect multiple I/O points locally, with a single cable running back to the control cabinet.

For larger machines or systems with greater complexity, distributed I/O can significantly reduce wiring costs. It allows for the use of a fieldbus coupler or an integrated HMI and PLC system to monitor and control remote I/O. Ethernet-based fieldbus systems are particularly advantageous, as they enable faster communication and more efficient control of I/O points.

Multi-Port Interconnection Junction Blocks: A Cost-Effective Solution

In some cases, a more cost-effective and simpler solution may involve the use of multi-port interconnection junction blocks. These blocks allow you to consolidate a group of I/O signals into a single cable, which is then run back to the control panel. By organizing the wiring in this way, the cost associated with errors in wiring, rewiring, and I/O replacement is significantly reduced.

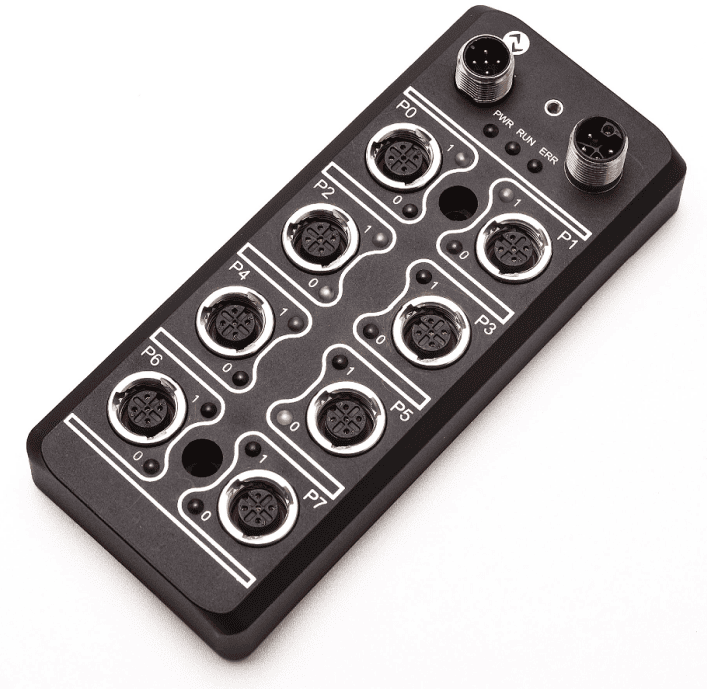

Multi-port junction blocks are particularly useful in systems where multiple sensors or solenoid-operated valves need to be connected to a central control unit. These junction blocks typically feature industry-standard M12-style connections and come in various port configurations, allowing you to tailor the solution to your specific needs. The ability to consolidate wiring and use fewer cables can reduce both installation time and material costs.

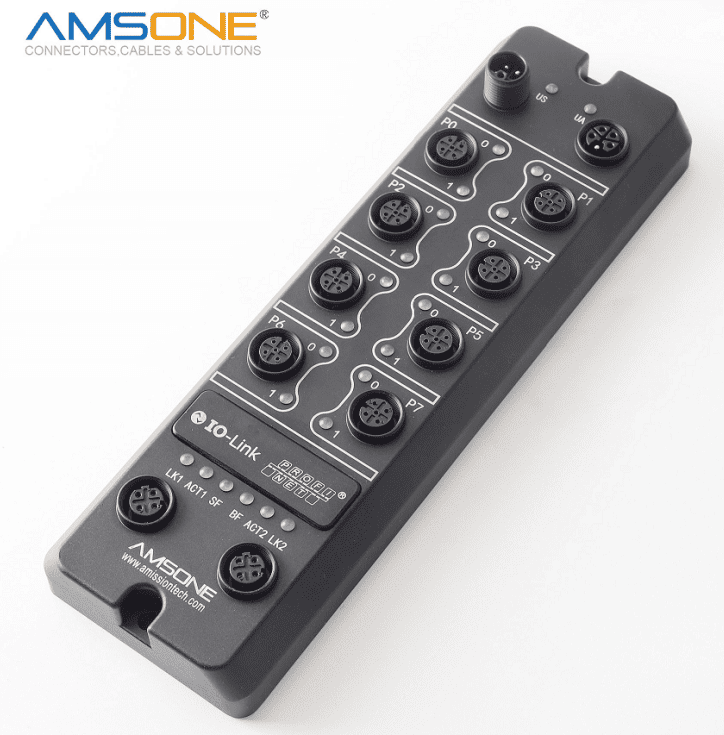

Remote I/O Systems: Reducing Wiring and Installation Time

Remote I/O systems are another excellent option for reducing wiring and installation time. These systems typically involve converting conventional I/O signals—such as analog and digital inputs and outputs—into a single communication protocol, which can then be transmitted back to the control room. By locating I/O modules closer to the field devices, remote I/O systems can reduce the amount of wiring required for the entire system.

A major advantage of remote I/O is the reduction in point-to-point wiring. Traditional systems require long cable lengths, which increases the complexity and cost of installation. Remote I/O allows you to use a single communication cable or bus running back to the control room, drastically reducing wiring costs and installation time. In fact, this approach can cut wiring requirements by nearly 50%, making it a highly cost-effective solution for large-scale systems.

Conclusion

When selecting an I/O termination method, machine builders must consider factors such as the size of the system, the existing infrastructure, and the specific application requirements. Ethernet-based protocols, including Modbus TCP/UDP, EtherNet/IP, EtherCAT, and Profinet, provide reliable and flexible solutions for reducing wiring costs and improving system efficiency. Distributed I/O, multi-port interconnection junction blocks, and remote I/O systems further contribute to reducing integration time and system complexity.

By carefully evaluating the available options and considering the long-term benefits of reducing wiring and simplifying integration, manufacturers can select the most appropriate I/O termination methods to optimize their systems and reduce overall costs.
