I-P/N: AM78M0312A371-050

7/8

IP67 Fastening Thread: M20*1.5,UL Certified, Wire Length 500mm noma variable

ENGEZA ESICELO

Incazelo
Technical Data

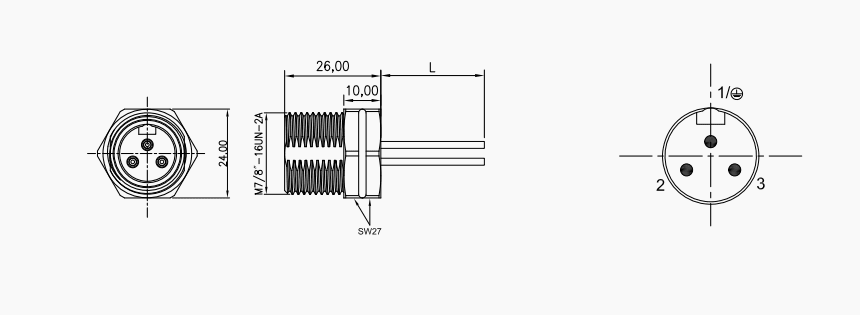

Dimension

Izinzuzo zakho

- Izinga lokuvikela IP67

- I-UL iqinisekiswe ngaphansi kwenombolo E517859

-RoHS, Finyelela ukuhambisana

Standard	7/8-intshi isixhumi UL 2238
Uhlelo lokukhiya	Lungisa ukukhiya ngezikulufu
Series	AM78
I-oda i-P/N:	AM78M0312A371-050
Ubulili	Male
Inombolo Yoxhumana Nabo	3
Isigaba	Iphaneli yokwamukela ikhwelo elingemuva
Uhlobo lokuxhuma	I-Solder yezintambo ezingashadile
Ukubhala ngekhodi	A
Ukukhiya inathi	M20*1.5mm
I-Torque	10 lbf-ngaphakathi. / 1.12 Nm
Inombolo yentela yangokwezifiso	85444290
Izwe azalelwe kulo	China

Imvume

Ukugunyazwa 1

Idatha kagesi (isixhumi)

Kukalwe njengamanje	12A
Isilinganiso samandla	300V
I-voltage ye-Impulse elinganiselwe	2500V
Ukumelana nokuqina	≥ 100 MΩ
Ukuthotshelwa kwe-EMC	hhayi
Izinga lokuvikelwa	IP67
Umjikelezo wokukhwelana	> Imijikelezo yokukhwelana eyi-100
Ukusebenza lokushisa	-25 °C ... 85 °C

I-Material spec (isixhumi)

Isilinganiso sokusha ngokusho kwe-UL 94	V0
Izinto zokuxhumana	I-Brass ene-Au Plating
Izinto zokufaka	PA66+GF
Izinto zamantongomane	Ithusi eline-nickle
Izinto zokufaka uphawu	Silicone
Impahla ye-Overmold/shell	Ithusi eline-nickle

Ukucaciswa kwekhebula

Uhlobo lwekhebula	Izintambo ze-PVC litz
Izinto zokuzihlukanisa	PVC
Isigaba esiphambanweni sabaqhubi	0.75mm2
I-Gauge (AWG)	18
Umbala wentambo	Okuluhlaza 1, okumnyama 2, okumhlophe 3
ubude	okuguquguqukayo
