Izixhumi zangaphansi kwamanzi namakhebuli

Izixhumi ze-SC16 Ngaphansi Kwamanzi

2+6 PIN, Isixhumi esingangenisi amanzi, owesilisa , Izinga lokuvikela:450M(Ukujula kwamanzi)

I-P/N: SC16M0411AXX1-XXX

2+6 PIN, Isixhumi esingangenisi amanzi, owesilisa , Izinga lokuvikela:450M(Ukujula kwamanzi)

ENGEZA ESICELO

Incazelo
Technical Data

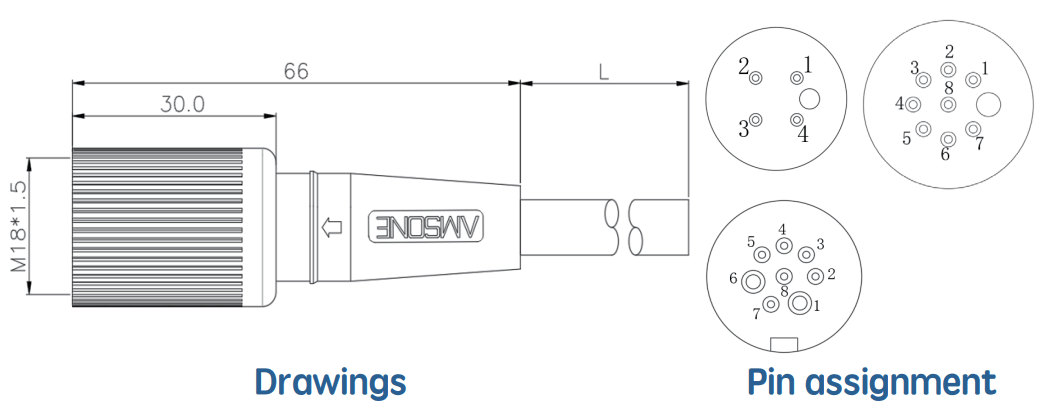

Dimension

Izinzuzo zakho

-100% izingxenye ze-plug-in ezihlolwe ngogesi

-Izixhumi ze-DC ezingafika ku-12 A no-63 V AC

-Intambo ye-PUR engena-halogen futhi eguquguqukayo ephezulu -360° evikelayo, ukusebenza okuthembekile kokuvikela

Standard	/
Uhlelo lokukhiya	Lungisa ukukhiya ngezikulufu
Series	SC19
I-oda i-P/N:	SC16M0411AXX1-XXX
Ubulili	Male
Ukubhala ngekhodi	/
I-Torque	/
Isigaba	Ikhebula elibunjwe ngaphambili
Uhlobo lokuxhuma	Ukuxhumeka kwe-solder
Indawo yekhebula	6.35MM
Inombolo yentela yangokwezifiso	85444290
Izwe azalelwe kulo	China

Electrical

Kukalwe njengamanje	1.5A
Isilinganiso samandla	I-60V AC
I-voltage ye-Impulse elinganiselwe	300V
Ukusebenza komshini	> 100 imijikelezo yokukhwelana
Ukumelana nokuqina	≥ 100 MΩ
Ukuthotshelwa kwe-EMC	/
Ukusebenza lokushisa	-10°C ~ 60°C
I-Degree yokuvikela	450M(Ukujula kwamanzi)

Cable

Uhlobo lwekhebula	eliguqukayo
Isigaba esiphambanweni sabaqhubi	0.34mm²
I-Gauge (AWG)	I-22AWG
Temperature	-10°C ~ 60°C
Okunye ukumelana	Ukumelana ne-UV (720 h) UL 2556
	I-Premium oil resistance (ijakhethi)
Umbala wentambo	okuguquguqukayo
ubude	okuguquguqukayo

Material

Isilinganiso sokuvutha	Acc. kuye UL94 V0
Izinto zokuxhumana	Ithusi elineGold plated
Izinto zokufaka	EPDM
Indandatho yamantongomane	PA
Izinto zokufaka uphawu	/
Izinto zokubumba	PA
